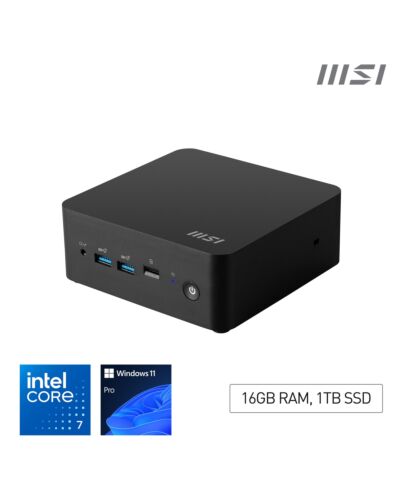

MSI Cubi NUC 1M Intel Core 7 150U Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 1TB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
£803.60
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i7 150U FS 16GB 1TB W11P configuration is a complete system equipped with an Intel Intel® Core 7 processor 150U, 16GB of DDR5-5200MHz memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i7 150U FS 16GB 1TB W11P configuration is a complete system equipped with an Intel Intel® Core 7 processor 150U, 16GB of DDR5-5200MHz memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
Key Features
- INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel® Core 7 processor 150U CPU, 16GB DDR5, 1TB M.2 SSD Storage, Windows 11 Pro software pre-installed
- 16GB RAM, Intel GRAPHICS - The system includes 16GB of pre-installed DDR5-5200 memory (Total 2 x SO-DIMM slots available) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups
- 1TB of pre-installed M.2 SSD storage ensures faster loading speeds 1x M.2 2280 SSD (PCIE, factory pre-installed), 1 x 2.5" HDD/SSD & and 1x M.2 2242 SSD free-slot
- VESA mountable design and Mounting Bracket included (75mm x 75mm or 100mm x 100mm)
- The front I/O panel features a 2x USB 10Gbps Type A and Micros-SD card reader; The rear I/O panel features 2x USB 10Gbps Type A as well. The compact 0.826L SFF case incorporates an efficient thermal design & low-noise fan with 21 dBA noise levels
- WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 and dual 2.5G ethernet LAN ports
- dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Specifications
Processor
Processor manufacturer*
Intel
Processor family*
Intel Core 7
Processor generation
Intel Core (Series 1)
Processor model*
150U
Processor cores
10
Processor threads
12
Performance cores
2
Efficient cores
8
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4 GHz
Performance-core base frequency
1.8 GHz
Efficient-core base frequency
1.2 GHz
Processor cache
12 MB
Number of processors installed
1
Processor base power
15 W
Maximum turbo power
55 W
Memory
Internal memory*
16 GB
Maximum internal memory*
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
5200 MHz
Storage
Total storage capacity*
1 TB
Storage media*
SSD
Optical drive type*
No
Number of storage drives installed
1
Number of storage drives supported
3
HDD size
2.5"
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
M.2
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Graphics
Discrete graphics card*
No
On-board graphics card*
Yes
Discrete graphics card model*
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Graphics
On-board graphics card model*
Intel Graphics
Network
Ethernet LAN*
Yes
LAN controller
Intel I226-V
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth
Yes
Bluetooth version
5.3
Wake-on-LAN ready
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
PowerShare
No
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
Yes
Thunderbolt 4 ports quantity
2
DVI port
No
HDMI ports quantity*
2
HDMI version
1.4/2.1
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Microphone in
No
Headphone outputs
1
Line-out
No
Line-in
No
Combo headphone/mic port
Yes
S/PDIF out port
No
DC-in jack
Yes
Number of rear USB ports
4
Number of front USB ports
2
Number of front audio ports
1
Fiber NIC port (Flex I/O)
No
Design
Chassis type*
Mini PC
Colour name
Black
Volume
0.84 L
Placement supported
Horizontal
VESA mounting
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour*
Black
Housing material
Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2024
Introduction month
July
Country of origin
China
Performance
Market positioning
Business
Powered by
MSI
Motherboard chipset
Intel SoC
Motherboard form factor
NUC
Trusted Platform Module (TPM)
Yes
Product type*
Mini PC
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed*
Windows 11 Pro
Power
Power supply*
120 W
Power supply input voltage
100-240 V
Power supply input frequency
50-60 Hz
Sustainability
Sustainability certificates
ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
Weight & dimensions
Width*
132.5 mm
Depth*
135.6 mm
Height*
50.1 mm
Weight*
625 g
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.45 kg
Packaging content
Mouse included
No
Keyboard included
No
Cables included
AC, Power
VESA mount included
Yes
Screws included
Yes
Display
Display included*
No
Other features
TV tuner integrated
No
Built-in microphone
No
Locale
English
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4711377229159 |
|---|---|
| MPN | CUBI NUC 1M I7 150U FS 16GB 1TB W11P |
| BRAND | MSI |
