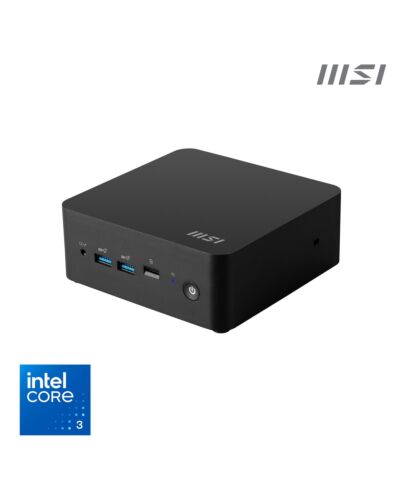

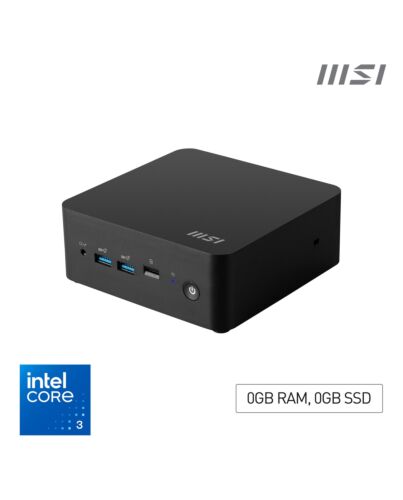

MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
£312.46
MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA, 0.84L sized PC, Mini PC barebone, Intel SoC, DDR5-SDRAM, M.2, Serial ATA, Serial ATA II, Serial ATA III, 120 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i3 100U BB configuration is a barebone system equipped with an Intel® Core 3 processor 100U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i3 100U BB configuration is a barebone system equipped with an Intel® Core 3 processor 100U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
Key Features
- INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel® Core 3 processor 100U CPU, NO RAM, NO Storage, NO OS or software pre-installed
- The system supports 64GB of DDR5-5200 memory (2 x SO-DIMM slots) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups
- Supports M.2 SSD storage to ensures faster loading speeds 1x M.2 2280 SSD (PCIE), 1x M.2 2242 SSD (PCIE) and 1 x 2.5" HDD/SSD
- VESA mountable design and Mounting Bracket included (75mm x 75mm or 100mm x 100mm)
- The front I/O panel features a 2x USB 10Gbps Type A and Micros-SD card reader; The rear I/O panel features 2x USB 10Gbps Type A as well. The compact 0.826L SFF case incorporates an efficient thermal design & low-noise fan with 21 dBA noise levels
- WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 and dual 2.5G ethernet LAN ports
- dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Specifications
Processor
Processor manufacturer
Intel
Processor family
Intel Core 3
Processor generation
Intel Core (Series 1)
Processor model
100U
Processor cores
6
Processor threads
8
Performance cores
2
Efficient cores
4
Performance-core Max Turbo Frequency
4.7 GHz
Efficient-core Max Turbo Frequency
3.3 GHz
Performance-core base frequency
1.2 GHz
Efficient-core base frequency
0.9 GHz
Built-in processor*
Yes
Processor cache
10 MB
Memory
Memory slots type*
SO-DIMM
Number of memory slots*
2
Maximum internal memory
64 GB
Supported memory clock speeds
5200 MHz
Supported memory types
DDR5-SDRAM
Storage
Supported storage drive types*
SSD
Storage drive sizes supported*
2.5,M.2
SSD form factor
M.2
Storage drive interface
M.2, Serial ATA, Serial ATA II, Serial ATA III
NVMe
Yes
Number of storage drives supported
3
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Graphics
On-board graphics card*
Yes
Graphics card family
Intel
On-board graphics card model
Intel Graphics
Number of displays supported
4
Audio
Built-in speaker(s)*
No
Network
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN*
Yes
Copper ethernet cabling technology
2.5GBASE-T
Wi-Fi*
Yes
LAN controller
Intel I226-V
Bluetooth
Yes
Bluetooth version
5.3
Near Field Communication (NFC)
No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
HDMI ports quantity*
2
HDMI version
1.4b/2.1
DVI port
No
Microphone in
No
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports*
2
S/PDIF out port
No
CardBus PCMCIA slot type
No
Consumer infrared headers
No
Serial port via internal header
No
Ports & interfaces
USB charging
Yes
TV-out
No
Thunderbolt 4 ports quantity
2
DC-in jack
Yes
Expansion slots
Number of M.2 (M) slots
2
Design
Chassis type*
0.84L sized PC
Product colour*
Black
Cooling type*
Active
On/off switch
Yes
LED indicators
System
Housing material
Plastic
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
75 x 75,100 x 100 mm
Product type*
Mini PC barebone
Performance
Motherboard form factor
NUC
Motherboard chipset
Intel SoC
Number of processors supported
1
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Windows operating systems supported
Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
Operating system installed
No
Sustainability
Sustainability certificates
ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
Power
Power supply type*
External AC adapter
Power supply
120 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Weight & dimensions
Width
132.5 mm
Depth
135.6 mm
Height
50.1 mm
Weight
0.625 g
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.45 g
Packaging content
Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
Drivers included
Yes
Display included
No
Mouse included
No
Keyboard included
No
Other features
Country of origin
China
Introduction month
July
Introduction year
2024
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4711377229142 |
|---|---|
| MPN | CUBI NUC 1M I3 100U BB |
| BRAND | MSI |
