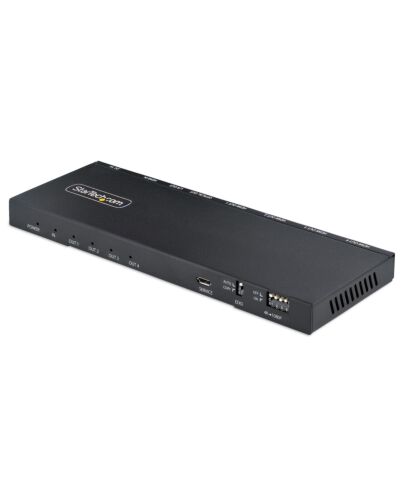

StarTech.com 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter w/ Built-in Scaler, HDMI Splitter 1 In 4 Out, 3.5mm/Optical Audio Port, HDMI Display/Output Splitter
£124.04
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
4-Port HDMI Splitter | 4K 60Hz | Built-In Scaler | 3.5mm, Optical, and HDMI Audio
This 4-port HDMI splitter with built-in scaler connects an HDMI video source to four HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), and 7.1 channel audio.
4K 60Hz Resolution
This 4-way HDMI splitter supports up to 4K 60Hz resolution, at 4:4:4 chroma subsampling. The built-in scaler enables enables the concurrent output of 2 resolutions, ideal for environments where there is a variety of displays, monitors, and projectors.
Flexible Audio
This 4K HDMI Splitter features HDMI, 3.5mm, and Optical audio outputs, enabling connections to a variety of speakers and/or amplifiers. Simultaneous audio output is supported across all the audio ports.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The metal enclosure and 8kV air and 4kV contact Electro-static Discharge (ESD) protection is suitable for installation in a variety of environments.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This 4-port HDMI splitter with built-in scaler connects an HDMI video source to four HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), and 7.1 channel audio.
4K 60Hz Resolution
This 4-way HDMI splitter supports up to 4K 60Hz resolution, at 4:4:4 chroma subsampling. The built-in scaler enables enables the concurrent output of 2 resolutions, ideal for environments where there is a variety of displays, monitors, and projectors.
Flexible Audio
This 4K HDMI Splitter features HDMI, 3.5mm, and Optical audio outputs, enabling connections to a variety of speakers and/or amplifiers. Simultaneous audio output is supported across all the audio ports.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The metal enclosure and 8kV air and 4kV contact Electro-static Discharge (ESD) protection is suitable for installation in a variety of environments.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key Features
- 4-PORT HDMI SPLITTER: This HDMI Splitter displays the same image, with audio, on 4 screens / 4:4:4 chroma subsampling support / HDMI 2.0b 4K 60Hz / HDR / 18Gbps Bandwidth / 7.1ch HDMI Audio / HDCP 2.2/1.4/ 8kV Air and 4kV Contact ESD Protection
- EDID MANAGEMENT SWITCH: The 4 way HDMI Splitter's EDID Auto setting uses a built-in scaler for outputting 2 different display resolutions / EDID Copy clones the EDID settings from output port 1 to another display at the same resolution (720p and up)
- FLEXIBLE AUDIO SUPPORT: The 4K HDMI Splitter has HDMI, 3.5mm, and Optical audio outputs to connect to a variety of speakers or amplifiers / Simultaneous audio output is supported across all ports / Supports Digital to Analog conversion (DAC)
- LONG REACH: Reach up to 16.4ft (5m) with passive HDMI cables / The 1x4 HDMI Splitter supports active HDMI cables and HDMI extenders (sold separately) to reach further distances which makes it ideal for boardrooms, digital signage and more
- EASY SETUP: No drivers or software required for the 1-Input 4-output HDMI 2.0 splitter / The metal enclosure makes it suitable for installation in many environments / Widescreen resolutions supported / DVI compatible with adapters (sold separately)
Specifications
Ports & interfaces
Video port type*
HDMI
Video out*
4x HDMI
HDMI version
2.0b
Video ports quantity*
4
Audio ports quantity
2
Features
Product colour
Black
Housing material
Metal
Maximum resolution*
3840 x 2160 pixels
HD type
4K Ultra HD
Maximum operating distance
5 m
Maximum refresh rate
60 Hz
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Plug and Play
Yes
LED indicators
Yes
Power
AC input voltage
100 - 240 V
Input current
0.35 A
Output voltage
5 V
Output current
1 A
Power consumption (typical)
0.1 W
Weight & dimensions
Width
62 mm
Depth
180 mm
Weight & dimensions
Height
14 mm
Weight
248 g
Packaging data
Package width
213 mm
Package depth
150 mm
Package height
55 mm
Package weight
500 g
Packaging content
Manual
Yes
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Technical details
Audio support
Yes
Supported audio channels
7.1
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
443 mm
Master (outer) case length
300 mm
Master (outer) case height
318 mm
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 0065030897204 |
|---|---|
| MPN | HDMI-SPLITTER-44K60S |
| BRAND | STARTECH |
