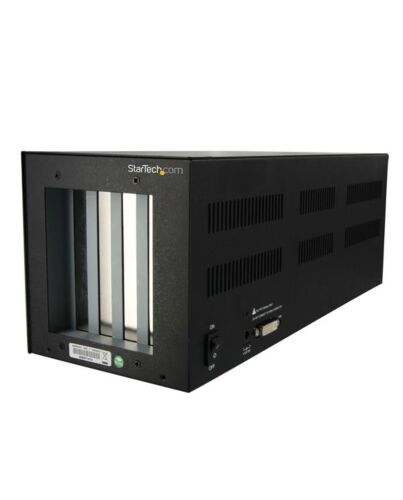

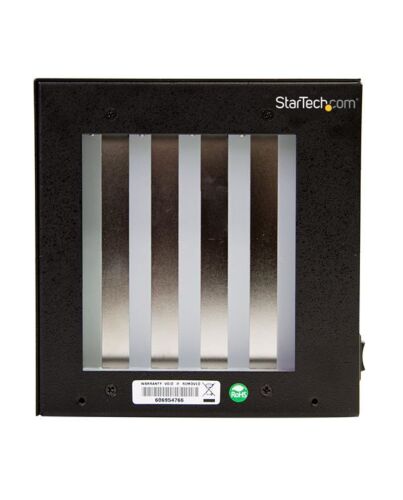

StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length
£393.67
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.
The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
Specifications
Design
Certification
ROHS, CE, FCC
Power
Output voltage
12 V
Output current
3 A
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
137 mm
Depth
382 mm
Height
143 mm
Weight
2 kg
Packaging data
Cables included
AC, DVI
Packaging data
Manual
Yes
Package width
208 mm
Package depth
436 mm
Package height
254 mm
Package weight
2.1 kg
Logistics data
Harmonized System (HS) code
84719000
Other features
Data transfer rate
250 Mbit/s
Ports quantity
4
Cable length
0.9 m
Compatible operating systems
Win 2000/XP/2003/ Vista
Linux
Mac OS X
Power requirements
115 - 230 AC
Additional Information
| EAN/UPC | 0065030835305 |
|---|---|
| MPN | PEX2PCIE4L |
