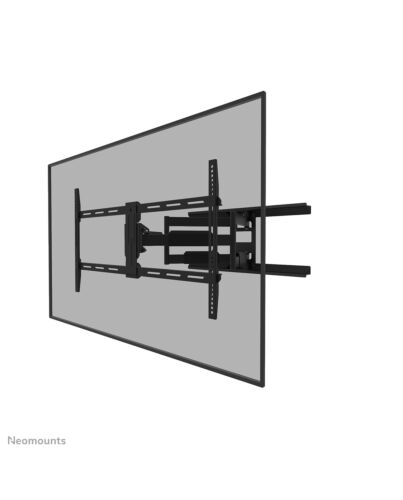

Neomounts WL40-550BL18 TV mount wall 43-75" - full motion - easy install
£141.62
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specifications
Mounting
Maximum weight capacity*
45 kg
Minimum screen size
109.2 cm (43")
Number of displays supported*
1
Maximum weight capacity (per display)*
45 kg
Maximum screen size*
190.5 cm (75")
Minimum VESA mount*
200 x 100 mm
Maximum VESA mount*
800 x 400 mm
Panel mounting interface
200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400
Mounting type*
Wall
Ergonomics
Height adjustment
No
Tilt adjustment
Yes
Tilt angle range
-3 - 15°
Swivelling
Yes
Swivel angle
54°
Swivel angle range
0 - 54°
Rotating
Yes
Angle of rotation
6°
Pivot angle
-3 - 3°
Cable management
Yes
Type
Full motion
Distance to the wall (max)
71 cm
Distance to the wall (min)
5.5 cm
Design
Product colour*
Black
Housing material
Steel
Technical details
Country of origin
China
Package net weight
11.7 kg
Quantity per pack
1 pc(s)
Lockable
Not lockable
Packaging content
Mounting kit
Yes

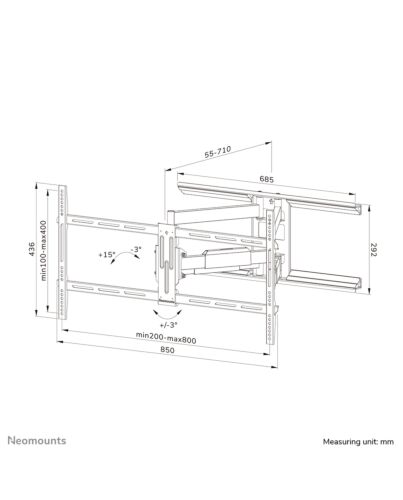

Weight & dimensions
Width
850 mm
Depth
55 mm
Depth (max)
5.5 cm
Height
436 mm
Weight
9.9 kg
Packaging data
Package width
882 mm
Package depth
340 mm
Package height
65 mm
Package weight
11.7 kg
Logistics data
Master (outer) case width
902 mm
Master (outer) case length
145 mm
Master (outer) case height
360 mm
Master (outer) case gross weight
24 kg
Master (outer) case net weight
22.1 kg
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
40 pc(s)
Additional Information
| EAN/UPC | 8717371448769 |
|---|---|
| MPN | WL40-550BL18 |
| BRAND | NEOMOUNTS |
