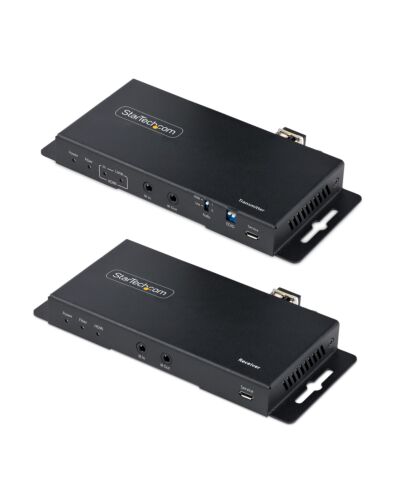

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single e) or 1000ft/300m (Mu
£497.93
StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single e) or 1000ft/300m (Multie) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit, 4096 x 2160 pixels, AV transmitter & receiver, 1000 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Extend an HDMI® audio and video signal over optical fiber at resolutions of up to 4K 60Hz with 7.1 channel audio
This HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
Works with Single e or Multie Fiber
This HDMI extender works over Single e or Multie fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.
Fiber Type
Single e
Multi e
Supported Distance
Up to 3300ft (1000m)
Up to 1000ft (300m)
Audio Capabilities
Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.
Hassle-Free Installation
The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.
The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
Works with Single e or Multie Fiber
This HDMI extender works over Single e or Multie fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.
Fiber Type
Single e
Multi e
Supported Distance
Up to 3300ft (1000m)
Up to 1000ft (300m)
Audio Capabilities
Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.
Hassle-Free Installation
The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.
The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key Features
- HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft (1km) over Single e or up to 1000ft (300m) over Multie fiber cabling; Single Strand LC/UPC connector; HDR10; HDCP 2.2; 4:4:4 Cha Subsampling
- RELIABLE VIDEO TRANSMISSION: HDMI extender works over Single e or Multie fiber, enabling the use of existing fiber cabling; Single strand optical fiber provides full bandwidth video while being immune to Electro-Magnetic Interference (EMI)
- AUDIO CAPABILITIES: HDMI 2.1 Extender offers an audio extraction function that enables playback of HDMI source audio via the 3.5mm audio output on the receiver unit; Simultaneous audio playback across both HDMI and 3.5mm outputs is supported
- HASSLE-FREE INSTALLATION: Point-to-Point connection with optical fiber between transmitter and receiver means no IP configuration, drivers, or network equipment required; Durable metal housing with built-in mounting brackets for a tidy installation
- ROBUST FEATURES: HDMI to Fiber Converter features a local HDMI output and IR/serial extension for convenient and versatile setup options; EDID ; LED indicators for status monitoring; 8kV air and 6kV contact Electrostatic Discharge (ESD) protection
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
4096 x 2160 pixels
Maximum transfer distance
1000 m
Chipset
SiFotonics SD1503/SD1513
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
Maximum refresh rate
60 Hz
Fiber e structure
Multi-e, Single-e
Extended display identification data (EDID)
Yes
Audio output channels
7.1 channels
Electrostatic Discharge (ESD) protection
Yes
Electrostatic Discharge (ESD) protection
8 kV
Infed (IR) frequency range
20 - 60 kHz
LED indicators
Activity, Power
Bandwidth
18 Gbit/s
HDCP
Yes
Baud rate
115.2 Kbit/s
HDCP version
2.2
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
HDMI in
1
Number of HDMI outputs
2
HDMI version
2.1
Fiber optic connector
LC
Fiber ports quantity
2
USB ports quantity
2
USB connector type
Micro-USB B
Serial ports quantity
2
Serial interface type
RS-232
Remote (IR) input
2
Remote (IR) output
2
Line outputs (RCA)
1
Line-in
Yes
DC-in jack
Yes
Power
AC input voltage
100 - 240 V
Operating voltage
5 V
Input current
0.35 A
Output current
1 A
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
68 mm
Depth
134 mm
Height
18 mm
Weight
280 g
Packaging data
Package width
200 mm
Package depth
300 mm
Package height
60 mm
Package weight
1 kg
Packaging content
AC adapter included
Yes
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
325 mm
Master (outer) case length
530 mm
Master (outer) case height
402 mm
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 0065030897303 |
|---|---|
| MPN | ST121HD20FXA2 |
| BRAND | STARTECH |
