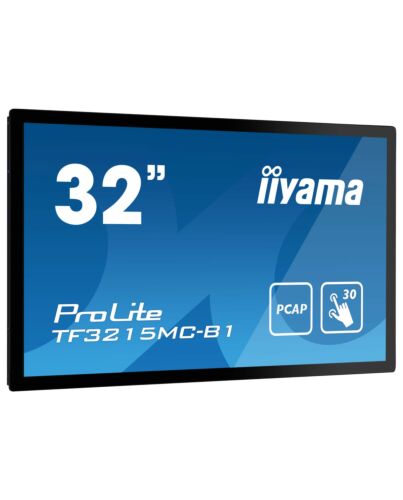

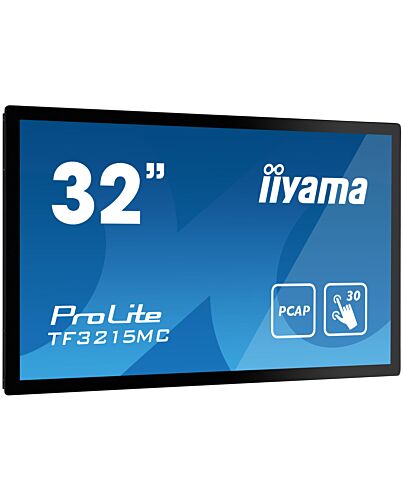

iiyama ProLite TF3215MC-B2 computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen
£777.48
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance f the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.
Reasons To Buy
Touch technology - Capacitive
Foam Seal
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.Ball-drop-test proof
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen f a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, estate office, in-store for POS or restaurants.24/7
24/7 displays are designed for a continuous operation.Specifications
Display
Display diagonal*
80 cm (31.5")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Display technology*
LED
Panel type*
VA
Touchscreen*
Yes
Touchscreen type
Kiosk
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
30
Display brightness (peak)
500 cd/m²
Display brightness (typical)
500 cd/m²
Display brightness
460 cd/m²
Response time*
8 ms
Response time measurement type
GTG (Gray to Gray)
Screen shape*
Flat
Contrast ratio (typical)*
3000:1
Contrast ratio (dynamic)
3000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours*
16.7 million colours
Pixel pitch
0.3637 x 0.3637 mm
Horizontal scan range
30 - 68 kHz
Vertical scan range
47 - 63 Hz
Viewable size, horizontal
69.8 cm
Viewable size, vertical
39.3 cm
Display diagonal (metric)
80 cm
Surface hardness
7H
Colour depth
8 bit
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Operating hours (hours/days)
24/7
Multimedia
Built-in speaker(s)*
No
Built-in camera*
No
Design
Market positioning*
Office
Product colour*
Black
Housing material
Metal
Front bezel colour
Black
Glass thickness
3 mm
Ports & interfaces
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI*
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
200 x 200 mm
Wall mountable
Yes
Cable management
Yes
Ergonomics
Cable lock slot*
No
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Plug and Play
Yes
Power
Energy efficiency class (SDR)*
F
Energy efficiency class (HDR)*
Not available
Energy consumption (SDR) per 1000 hours*
31 kWh
Power consumption (typical)*
32 W
Power consumption (standby)*
0.7 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width (with stand)
743 mm
Depth (with stand)
61 mm
Height (with stand)
437 mm
Weight (with stand)
10 kg
Width (without stand)
742.5 mm
Depth (without stand)
61 mm
Height (without stand)
437 mm
Weight (without stand)
10 kg
Packaging data
Package width
890 mm
Package depth
155 mm
Package height
630 mm
Package weight
13.3 kg
Packaging content
Cables included
AC, USB, HDMI
Quick start guide
Yes
Sustainability
Sustainability certificates
ErP
Other features
International Protection (IP) code
IP65
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Positional accuracy
2 mm
User controls
Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display e, factory)
Brightness
460 cd/m²
Active display area (W x H)
698.4 x 392.8 mm
Touch method
finger, glove (latex), capacitive stylus
Weight
10 kg
Height
437 mm
Width
743 mm
Depth
61 mm
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Full HD
Yes
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF)
50000 h
Additional Information
| EAN/UPC | 4948570123667 |
|---|---|
| MPN | TF3215MC-B2 |
| BRAND | Iiyama |
