Components

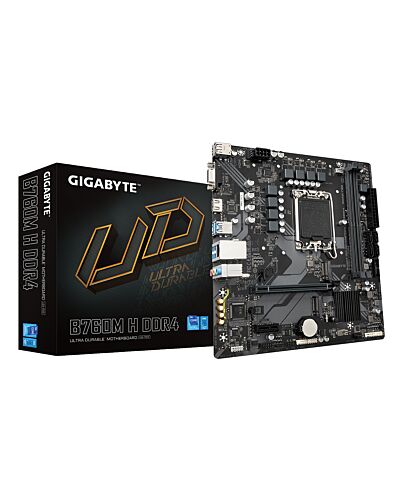

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up
£71.02
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 64 GB, DDR4-SDRAM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2DIMMs XMP Memory ule Support
- Next Generation Storage：2PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors
1
Supported processor sockets
LGA 1700
Maximum internal memory supported by processor
64 GB
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max)
3200 MHz
Maximum internal memory*
64 GB
Supported memory ule capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Storage controllers
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
DirectX version
12.1
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
Total number of SATA connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
Serial port headers
1
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.4
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
Intel B760 Express
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
Brown
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
825 g
Weight & dimensions
Width
230 mm
Depth
215 mm
Height
35 mm
Packaging content
Batteries included
Yes
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331854645 |
|---|---|
| MPN | B760M H DDR4 |
| BRAND | Gigabyte |
