StarTech.com 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1x2 HDMI Display/Output Splitter, HDR/HDCP, 20in (50cm) Built-in HDMI Cable
£56.24
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port

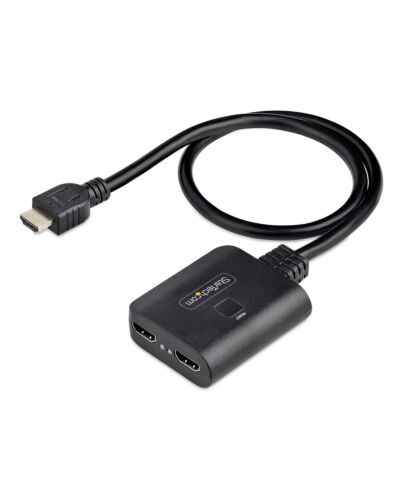

This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key Features
- DUPLICATED HDMI DISPLAYS: 2-Port 4K 60Hz HDMI Splitter displays the same image from a single HDMI source on dual-HDMI displays; HDR; UHD; 4:4:4 chroma subsampling support; HDMI 2.0; 18Gbps (total) Bandwidth; 7.1ch Audio; HDCP 2.2/1.4
- AUTOMATIC DOWNSCALING: HDMI splitter clones EDID settings from output port 1 to port 2, providing the same resolution on both displays; Built-in downscaler auto-detects the resolutions of the connected displays, enabling 1080p and 4K output simultaneously
- POWER OPTIONS: 4K HDMI Splitter includes a 31inch (78cm) USB power cable to connect to the included USB wall charger; USB-A power cable can be connected to any available 5V 1A USB port; Max 5W power consumption
- EXTRA-LONG CABLE: 1x2 splitter features a 20in built-in HDMI cable to connect to the source device, reducing strain on ports/connectors; Supports passive HDMI cables up to 16ft (5m) or active cables/extenders (sold separately) to reach further distances
- USER-FRIENDLY DESIGN: 1 in 2 out HDMI splitter features a reset button for easy troubleshooting and EDID redetection, without the need of unplugging cables; 8kV air and 6kV contact ESD protection; Driverless and OS independent
Specifications
Ports & interfaces
Video port type*
HDMI
Video out*
2x HDMI
HDMI version
2.0
Video ports quantity*
2
Features
Product colour
Black
Housing material
Acrylonitrile butadiene styrene (ABS)
Maximum resolution*
4096 x 2160 pixels
HD type
4K Ultra HD
Maximum operating distance
5 m
Maximum refresh rate
60 Hz
High Dynamic Range (HDR) supported
Yes
Cable length
0.5 m
Data transfer rate
18 Gbit/s
HDCP
Yes
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
LED indicators
Power
Power
AC input voltage
100 - 240 V
Input current
0.3 A
Output voltage
5 V
Output current
1 A
USB powered
Yes
Weight & dimensions
Width
55 mm
Depth
65 mm
Weight & dimensions
Height
19 mm
Weight
92 g
Packaging data
Package width
190 mm
Package depth
145 mm
Package height
30 mm
Package weight
168 g
Packaging content
Manual
Yes
Cables included
USB Type-A to Micro-USB Type-B
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Technical details
Supported audio channels
7.1
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
630 mm
Master (outer) case length
470 mm
Master (outer) case height
220 mm
Products per master (outer) case
60 pc(s)
Additional Information
| EAN/UPC | 0065030897556 |
|---|---|
| MPN | HDMI-SPLITTER-4K60UP |
