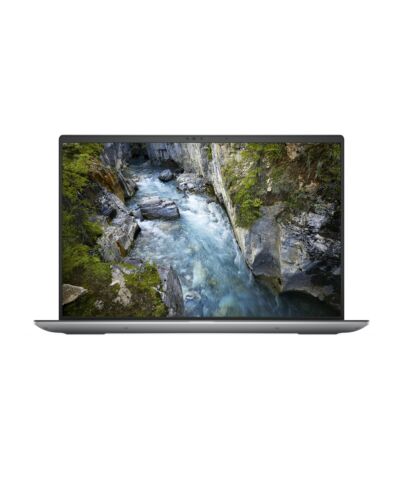

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 16 GB LPDDR5x-
£2,049.96
DELL Precision 5690, Intel Core Ultra 7, 40.6 cm (16"), 1920 x 1200 pixels, 16 GB, 1 TB, Windows 11 Pro
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Intelligent performance. Power to create your masterpieces.
A premium workstation built for users who want a large display and exceptional, intelligent performance in a thin and light design. Features FHD HDR IR camera, Haptics trackpad and premium audio for a high-quality experience.
A premium workstation built for users who want a large display and exceptional, intelligent performance in a thin and light design. Features FHD HDR IR camera, Haptics trackpad and premium audio for a high-quality experience.
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 165H (24MB Cache)
- 40.6 cm (16") Full HD+ 1920 x 1200 IPS, NVIDIA RTX 1000 Ada (6GB GDDR6)
- 16GB LPDDR5x-SDRAM & 1000GB SSD
Reasons To Buy
Intelligent performance
Fast and efficient Intel® Core™ Ultra 5, 7 and 9 processors 45W options featuring the unique combined AI-engine of CPU, integrated Intel® Arc graphics GPU, and dedicated low-power AI engine NPU with Intel® AI Boost, and Intel vPro® options.
Graphics
Faster integrated graphics and up to NVIDIA RTX™ 5000 Ada graphics.
Scalable memory
Up to 64GB of LPDDR5x 7467MT/s dual channel memory.
Storage capabilities
2x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB).
Battery
Up to 6-cell (99.5Whr) Lithium-Ion polymer battery with Express ChargeBoost.
Thermals
Dual Opposite Outlet (DOO) fans, heat pipes, GORE and User Selectable Thermal Tables (USTT).
Immersive user experience
The 5690 is set with Haptics trackpad, dual array mics, four premium speakers, and optional touch screen.
Capture
FHD IR camera with HDR complete with ambient light sensor and Windows Hello.
View
Get an expansive 16:10 display with up to UHD+ OLED, DCI-P3 100%, up to 500nits brightness, and PremierColour. Complete with ComfortView Plus options to reduce blue light emissions.

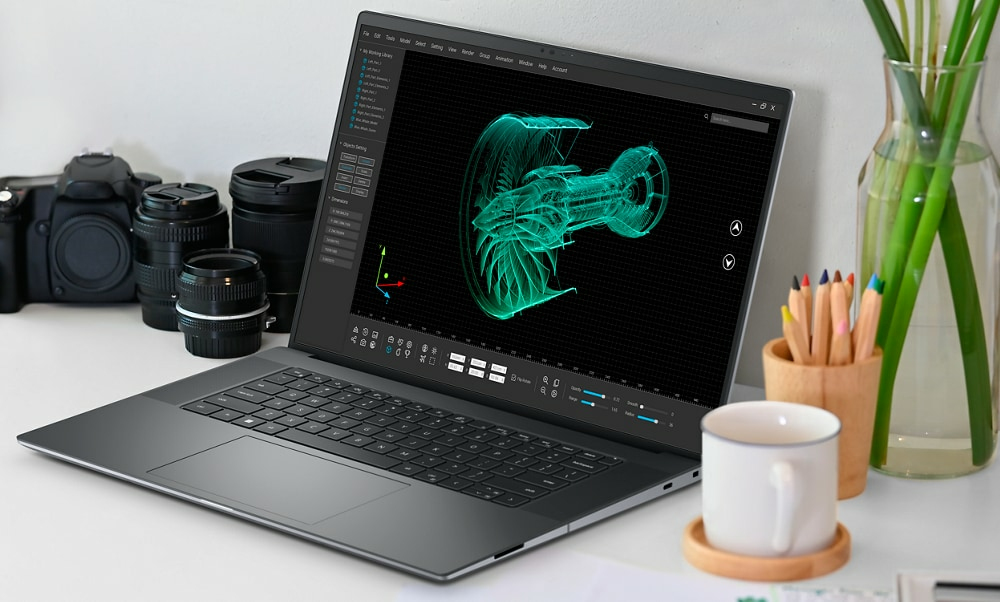

Power to create your masterpieces
Design - 2D, 3D CAD
Content creation
Production
Photo, video and audio editing
Web Design
Graphic Design
AI at your fingertips
Time saver: Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday.
AI-accelerated apps: Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient:
Collaboration: Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls .
Creativity: 132% faster performance when running on-device AI photo editing on Adobe .
Security: Detect malware with less than 1% CPU utilisation using CrowdStrike .
Intelligent collaboration: Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don’t impact overall system performance.
Personalised performance: Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimises audio connectivity, productivity and configurability, all in one software.
Independent Software Vendor (ISV) certification
Security
Fingerprint reader Uses biometrics to log you in to Dell Safeguard and response.
Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.
SecureWorks responds to security incidents with Safe-mute.
Dell Peripheral manager intelligent mic muting and video disabling.
VR and AI Compatibility
Advancing sustainability
Elevated Standards: Meeting environmental standards demonstrates how our products adhere to energy-efficiency and other extensive climate-related standards. This workstation is ENERGY STAR® 8.0, TCO Generation 9, and EPEAT Gold registered with Climate+ .
Innovative packaging: This workstation ships in packaging made with 100% recycled or renewable materials that is also 100% recyclable .
Dell APEX PC-as-a-Service
Features

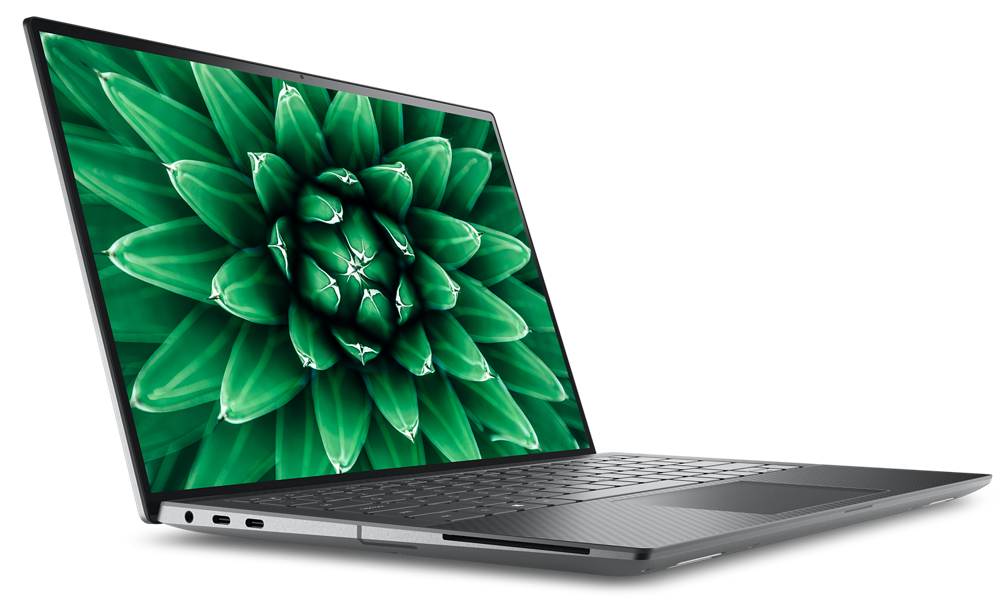

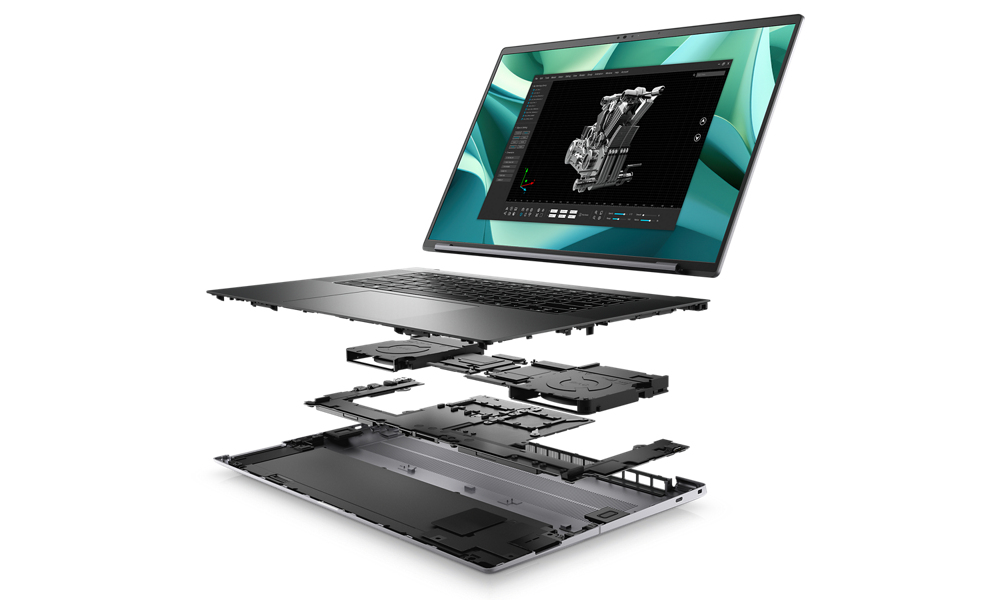

New Precision 5690 Workstation
Product Features
The Precision 5690 has a sleek look and feel that delivers exceptional performance. With an optional OLED 4k touch display, WIFI 7 capabilities, and up to NVIDIA RTX™ 5000 Ada graphics it is an outstanding workstation for creative and design applications.
Intelligent performance
Processor
Fast and efficient Intel® Core™ Ultra 5, 7 and 9 processors 45W options featuring the unique combined AI-engine of CPU, integrated Intel® Arc graphics GPU, and dedicated low-power AI engine NPU with Intel® AI Boost, and Intel vPro® options.Graphics
Faster integrated graphics and up to NVIDIA RTX™ 5000 Ada graphics.Scalable memory
Up to 64GB of LPDDR5x 7467MT/s dual channel memory.Storage capabilities
2x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB).Battery
Up to 6-cell (99.5Whr) Lithium-Ion polymer battery with Express ChargeBoost.Thermals
Dual Opposite Outlet (DOO) fans, heat pipes, GORE and User Selectable Thermal Tables (USTT).Immersive user experience
Experience

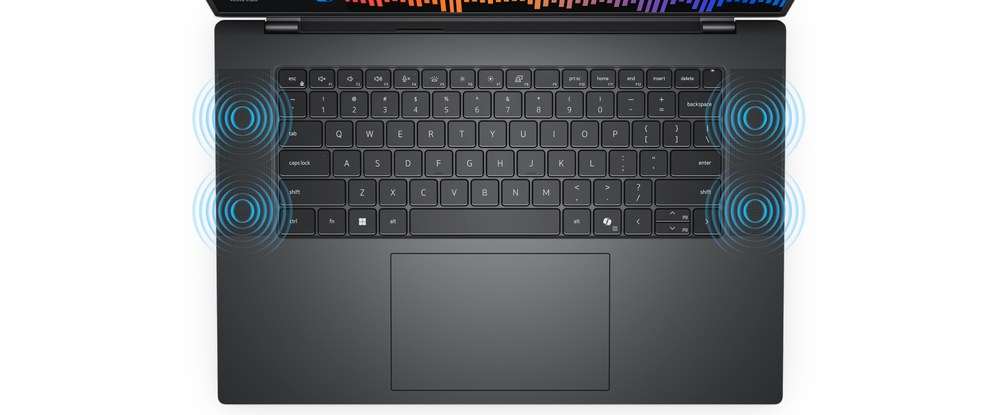

The 5690 is set with Haptics trackpad, dual array mics, four premium speakers, and optional touch screen.Capture
FHD IR camera with HDR complete with ambient light sensor and Windows Hello.View
Get an expansive 16:10 display with up to UHD+ OLED, DCI-P3 100%, up to 500nits brightness, and PremierColour. Complete with ComfortView Plus options to reduce blue light emissions.Power to create your masterpieces
Built for work and design with creative applications like:- Design - 2D, 3D CAD
- Content creation
- Production
- Photo, video and audio editing
- Web Design
- Graphic Design
AI at your fingertips
Next-level computing: Intel® Core™ Ultra processors enable AI-powered efficiency with AI accelerators within the world’s most intelligent commercial PCs featuring Intel® AI Boost, with vPro options and Copilot in Windows 11. Enjoy power-efficient performance for business workloads with this new CPU, GPU, and NPU three tier multi-processing architecture.Time saver: Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday.
AI-accelerated apps: Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient:
- Collaboration: Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls
- Creativity: 132% faster performance when running on-device AI photo editing on Adobe
- Security: Detect malware with less than 1% CPU utilisation using CrowdStrike
Intelligent collaboration: Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don’t impact overall system performance.
Personalised performance: Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimises audio connectivity, productivity and configurability, all in one software.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.Security
- Windows Hello Compatible IR camera recognises you, increasing privacy and productivity.
- Fingerprint reader Uses biometrics to log you in to Dell Safeguard and response.
- Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.
- SecureWorks responds to security incidents with Safe-mute.
- Dell Peripheral manager intelligent mic muting and video disabling.
VR and AI Compatibility
VR and AI capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5690 has next generation professional graphics and powerful performance normally found only in tower workstations.Ports & Slots
1. Full-SD, Optional SD 7.0 Express2. USB Type-C™/ Display port alt
3. Wedge-shaped lock slot
4. HDMI 2.1
5. Universal audio
6. (2) Thunderbolt 4 with PowerDelivery USB Type-C™/ Display port alt
7. Optional Smart Card reader
Dimensions & Weight
1. Height: 0.87 in. (22.17 mm)2. Width: 13.92 in. (353.68 mm)
3. Depth: 9.46 in. (240.33 mm)
Weight (minimum): 4.46 lb (2.03 kg)
Advancing sustainability
Designed with sustainable materials: This Precision workstation is designed thoughtfully using sustainable materials including post-consumer recycled plastic and low-emissions and recycled aluminium in its chassis.Elevated Standards: Meeting environmental standards demonstrates how our products adhere to energy-efficiency and other extensive climate-related standards. This workstation is ENERGY STAR® 8.0, TCO Generation 9, and EPEAT Gold registered with Climate+.
Innovative packaging: This workstation ships in packaging made with 100% recycled or renewable materials that is also 100% recyclable.
Specifications
Design
Product type*
Mobile workstation
Product colour*
Grey
Form factor*
Clamshell
Market positioning
Business
Intel® vPro™ Platform Eligibility
Yes
Display
Display diagonal*
40.6 cm (16")
Display resolution*
1920 x 1200 pixels
Touchscreen*
No
HD type
Full HD+
Panel type
IPS
LED backlight
Yes
Native aspect ratio
16:10
Anti-glare screen
Yes
Display brightness
500 cd/m²
Pixel density
142 ppi
RGB colour space
DCI-P3
Colour gamut
100%
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1300:1
Processor
Processor manufacturer*
Intel
Processor family*
Intel Core Ultra 7
Processor generation
Intel® Core™ Ultra (Series 1)
Processor el*
165H
Processor cores
16
Processor threads
22
Processor boost frequency
5 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
1.4 GHz
Efficient-core base frequency
0.9 GHz
Low Power Efficient-core Base Frequency
700 MHz
Processor cache
24 MB
Processor cache type
Smart Cache
Processor base power
28 W
Maximum turbo power
115 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, FP32, Int8
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory*
16 GB
Internal memory type
LPDDR5x-SDRAM
Memory form factor
On-board
Memory channels
Dual-channel
Memory data transfer rate
7467 MT/s
Storage
Total storage capacity*
1 TB
Storage media*
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
SSD performance class
40
M.2 SSD size
2280 (22 x 80 mm)
Optical drive type*
No
Graphics
Discrete graphics card el*
NVIDIA RTX 1000 Ada
Discrete graphics card memory
6 GB
Discrete graphics memory type
GDDR6
On-board graphics card*
Yes
On-board GPU manufacturer
Intel
Discrete graphics card*
Yes
On-board graphics card family
Intel Arc Graphics
On-board graphics card el*
Intel Arc Graphics
Audio
Number of built-in speakers
4
Speakers manufacturer
Waves
Built-in microphone
Yes
Number of microphones
2
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP
Front camera resolution
1920 x 1080 pixels
Front camera HD type
Full HD
Camera
Video capturing speed
30 fps
Infed (IR) camera
Yes
Network
Top Wi-Fi standard*
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Mobile network connection*
No
Antenna type
2x2
WLAN controller el
Intel Wi-Fi 7 BE200
WLAN controller manufacturer
Intel
Bluetooth
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity*
1
HDMI version
2.1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate e
Yes
Performance
Ambient light sensor
Yes
Acceleeter
Yes
Proximity sensor
Yes
Gyroscope
Yes
Hall sensor
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad*
No
Keyboard backlit
Yes
Keyboard language
UK English
Copilot key
Yes
Software
Operating system architecture
64-bit
Operating system language
German, Dutch, English, French, Italian
Trial software
No Microsoft Office Licence Included - 30 day Trial Offer Only
Operating system installed*
Windows 11 Pro
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity*
99.5 Wh
Battery voltage
11.55 V
Battery recharge time
3 h
Fast charging
Yes
Battery charge indicator
Yes
Battery weight
363 g
Power
AC adapter power
165 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
USB Power Delivery (USB PD)
Yes
Security
Cable lock slot
Yes
Cable lock slot type
Wedge
Fingerprint reader
Yes
Trusted Platform ule (TPM)
Yes
Trusted Platform ule (TPM) version
2.0
Password protection
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Weight & dimensions
Width
353.7 mm
Depth
240.3 mm
Height (front)
2.05 cm
Height (rear)
2.22 cm
Weight*
2.03 kg
Carbon footprint
Total carbon footprint (kg of CO2e)
246
Carbon emissions, manufacturing (kg of CO2e)
200.49
Carbon emissions, logistics (kg of CO2e)
6.888
Carbon emissions, energy usage (kg of CO2e)
35.916
Carbon emissions, end-of-life (kg of CO2e)
2.46
PAIA version
GaBi version 1, 2024
Packaging content
Cables included
AC
Additional Information
| EAN/UPC | 5397184805619 |
|---|---|
| MPN | WM34N |
| BRAND | DELL |
Disclaimer
Actual configuration might differ f illustration
Product Carbon Footprint (PCF)
1. Dell calculates the Product Carbon Footprint using one of two methodologies, depending on the product: the Dell PCF calculator (GaBi version , YYYY) or the Product Attribute to Impact Algorithm (PAIA, X.X.X, YYYY). The methodology used is indicated in the "Version of PCF tool used" column.
2. PAIA (Product Attribute Impact Algorithm) is a streamlined LCA tool developed by MIT ‘s Materials System Laboratory. PAIA estimates the product’s carbon footprint using limited system attributes of the product such as component dimension, screen size, system weight, and annual energy consumption.
3. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product el.
4. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations. For more information refer to the PCF pages on Dell.com.
5. For the PAIA PCF methodology, the transportation f assembly to customer includes the emissions generated during air, ocean and land transportation of finished or semi-finished Dell products between Dell facilities and between Dell facilities to customers.
6. For the Dell PCF calculator and methodology, the transportation phase the default delivery assumptions are 90% of transport happening by sea and 10% happening by air. Trucking distances don’t contribute as much to the PCF impact compared to more influential by sea or by air distances es.
7. Please note, PAIA uses the ecoinvent Database ( whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR ( configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.The Dell PCF Calculator also estimates Use Phase emissions for the U.S. and China, which are available in the PCF PDF documents on Dell.com.
10. The report provides the total emissions separated by the 4 lifecycle phases: manufacturing, transport, use, and end of life to understand the impact of each phase.
11. The Dell PCF Calculator lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 5 years, Display - 6 years and Servers/Storage - 4 years.
* Blanks indicate we do not have the corresponding metric calculated or data is currently unavailable for the specific product at this time.
Product Carbon Footprint (PCF)
1. Dell calculates the Product Carbon Footprint using one of two methodologies, depending on the product: the Dell PCF calculator (GaBi version , YYYY) or the Product Attribute to Impact Algorithm (PAIA, X.X.X, YYYY). The methodology used is indicated in the "Version of PCF tool used" column.
2. PAIA (Product Attribute Impact Algorithm) is a streamlined LCA tool developed by MIT ‘s Materials System Laboratory. PAIA estimates the product’s carbon footprint using limited system attributes of the product such as component dimension, screen size, system weight, and annual energy consumption.
3. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product el.
4. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations. For more information refer to the PCF pages on Dell.com.
5. For the PAIA PCF methodology, the transportation f assembly to customer includes the emissions generated during air, ocean and land transportation of finished or semi-finished Dell products between Dell facilities and between Dell facilities to customers.
6. For the Dell PCF calculator and methodology, the transportation phase the default delivery assumptions are 90% of transport happening by sea and 10% happening by air. Trucking distances don’t contribute as much to the PCF impact compared to more influential by sea or by air distances es.
7. Please note, PAIA uses the ecoinvent Database ( whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR ( configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.The Dell PCF Calculator also estimates Use Phase emissions for the U.S. and China, which are available in the PCF PDF documents on Dell.com.
10. The report provides the total emissions separated by the 4 lifecycle phases: manufacturing, transport, use, and end of life to understand the impact of each phase.
11. The Dell PCF Calculator lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 5 years, Display - 6 years and Servers/Storage - 4 years.
* Blanks indicate we do not have the corresponding metric calculated or data is currently unavailable for the specific product at this time.
