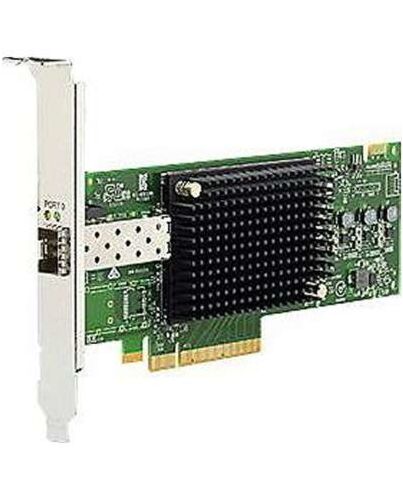

Lenovo 01CV830 network card Internal Fiber 16000 Mbit/s
£545.28
Lenovo 01CV830, Internal, Wired, PCIe, Fiber, 16000 Mbit/s, Black, Green, Silver
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
PCIe
Interface*
Fiber
Fiber ports quantity
1
Fiber optic connector
FC, SFP+
PCI version
3.0
Network
Maximum data transfer rate*
16000 Mbit/s
Full duplex
Yes
Web-based management
Yes
Maximum operating distance
150 m
Design
Component for*
Server
Product colour
Black, Green, Silver
Internal*
Yes
Rack mounting
Yes
Rack capacity
2U
Hot-swap
Yes
Hot-Plug support
Yes
LED indicators
Yes
Mean time between failures (MTBF)
10000000 h
Certification
AS/NZS CISPR22:2009+A1, Class A
Australian EMC Framework (RCM)
cUR recognized to CSA 22.2, No. 60950-1-07
EN55022:2010, Class A
EN55024:2010
EN55032:2012
EU (CE Mark)
FCC Rules, Part 15, Class A
Industry Canada, ICES-003, Class A
Japan VCCI, Class A
Korea MSIP, Class A
RoHS Compliant (Directive 2011/65/EU)
TUV certified to EN60950-1+A11+A1+A12+A2
Taiwan BSMI, Class A
UL recognized to UL60950-1 2nd Edition
Compatible products
System x3500 M5 Type 5464
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
System requirements
Linux operating systems supported
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
Other operating systems supported
VMware vSphere ESXi
Server operating systems supported
Windows Server 2012, Windows Server 2012 R2
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Depth
168 mm
Height
69 mm
Packaging data
Low-profile bracket
Yes
Quantity per pack
1 pc(s)
Package type
Box
Packaging content
Mounting brackets included
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Other features
PCI-SIG* SR-IOV Capable
Yes
Additional Information
| EAN/UPC | 889488417339 |
|---|---|
| MPN | 01CV830 |
| BRAND | LENOVO |
