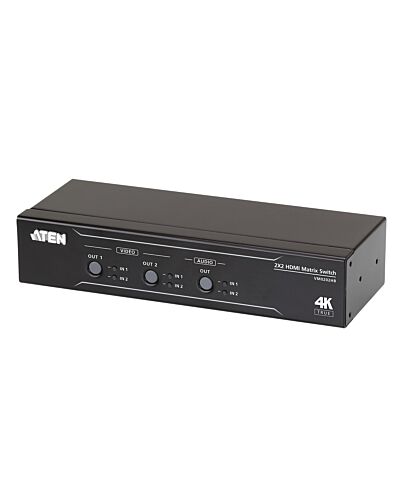

ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
£250.01
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x JCNT-3301-103G 3-pole Terminal Block
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mount Kit
1x User Instructions
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x JCNT-3301-103G 3-pole Terminal Block
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mount Kit
1x User Instructions
Key Features
- Connects 2 HDMI sources to any 2 HDMI displays
- Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
- Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
- Supports Dolby True HD and DTS HD Master Audio
- Auto switching – automatically detects and switches to a new source once connected (Default: off)
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
- Long-distance transmission up to 5 meters
- HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro HDMI cable lock for secure HDMI cable connections
- All metal casing
- Firmware upgradable
- Rack mountable
Specifications
Features
Product type*
AV matrix switcher
Data transfer rate
18 Gbit/s
Maximum pixel clock
600 MHz
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
2.2
3D
Yes
Firmware upgradeable
Yes
Extended display identification data (EDID)
Yes
Supported resolutions
4096 x 2160, 3840 x 2160
Design
Housing colour
Black
Housing material
Metal
Rack mounting
Yes
Control type
Buttons
LED indicators
Yes
Remote control included
Yes
Display
Built-in display*
No
Ports & interfaces
HDMI input ports quantity
2
HDMI output ports quantity
2
USB connector type
Micro-USB
USB ports quantity
1
RS-232 ports
1
Remote (IR) input
1
DC-in jack
Yes
Power
Power consumption (typical)
2.47 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Logistics data
Products per master (outer) case
5 pc(s)
Master (outer) case gross weight
5.25 kg
Master (outer) case length
325 mm
Master (outer) case width
250 mm
Master (outer) case height
175 mm
Master (outer) case net weight
4.25 kg
Harmonized System (HS) code
85299097
Weight & dimensions
Width
200 mm
Depth
76 mm
Height
42 mm
Weight
850 g
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
1 kg
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
AC adapter included
Yes
IR receiver included
Yes
Additional Information
| EAN/UPC | 4710469340024 |
|---|---|
| MPN | VM0202HB |
| BRAND | ATEN |
