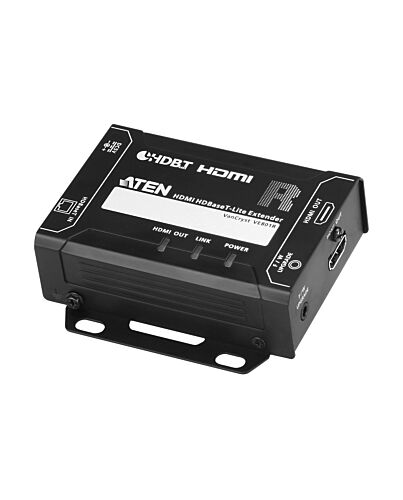

ATEN HDMI Receiver only over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
£144.25
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
* Compatible HDBaseT Transmitter Units: VE801T
* Compatible HDBaseT Transmitter Units: VE801T
Key Features
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
Specifications
Features
Type*
AV receiver
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
70 m
LED indicators
Yes
Supported video modes
1080p
Bandwidth
340 MHz
HDCP
Yes
Material
Metal
Product colour
Black
Ports & interfaces
Ethernet LAN
Yes
RJ-45 input ports
1
Number of HDMI outputs
1
DC-in jack
Yes
Power
Power consumption (typical)
4.23 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Dimensions (WxDxH)
87 x 103 x 30 mm
Weight
250 g
Packaging content
AC adapter included
Yes
Technical details
Compliance certificates
RoHS
Additional Information
| EAN/UPC | 4719264642791 |
|---|---|
| MPN | VE801R-AT-E |
| BRAND | ATEN |
