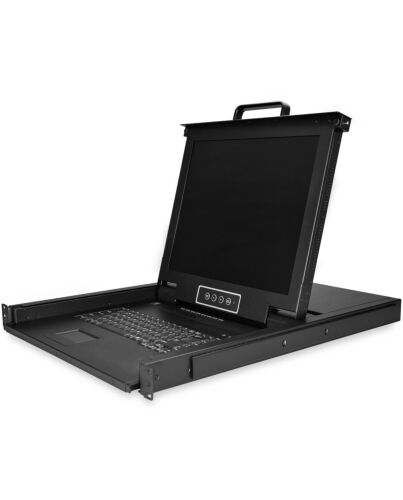

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
£1,161.95
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This 8-port KVM console comes with everything you need to set up right out of the box:
• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support
The StarTech.com Advantage
Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This 8-port KVM console comes with everything you need to set up right out of the box:
• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support
The StarTech.com Advantage
Key Features
- TECH SPECIFICATIONS: Rackmount KVM Console, 17"" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22"" [56 cm] to 35"" [90 cm] (incl. mounting hardware)
- HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
- TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
Specifications
Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Display
TFT LCD
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
On Screen Display (OSD)
Yes
Pixel pitch
0.264 x 0.264 mm
Aspect ratio
5:4
Display type
LCD
Response time
5 ms
Display number of colours
16.78 million colours
Technical details
Material
Steel
Mean time between failures (MTBF)
50000 h
Product colour
Black
Operating relative humidity (H-H)
10 - 80%
Rack mounting
Yes
Daisy chain
No
Key lock
No
IP control
No
LED indicators
Yes
Sustainability certificates
UL ECOLOGO
Compliance certificates
CE, RoHS
Rack capacity
1U
Ports & interfaces
VGA (D-Sub) ports quantity
8
Keyboard port type
PS/2
Mouse port type
PS/2
Video port type
VGA
USB 2.0 Type-A ports quantity
2
Keyboard
Hot keys
Yes
Power
Power consumption (typical)
13 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
448 mm
Height
619 mm
Depth
43 mm
Weight
17 kg
Mounting depth (min)
56 cm
Mounting depth (max)
90 cm
Packaging data
Package weight
19.7 kg
Package width
76 mm
Package depth
617 mm
Package height
182 mm
Packaging content
Cables included
KVM
Screws included
Yes
Number of screws
8
Cage nuts included
Yes
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Manual
Yes
Logistics data
Master (outer) case width
767 mm
Master (outer) case length
617 mm
Master (outer) case height
182 mm
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 0065030872485 |
|---|---|
| MPN | RKCONS1708K |
| BRAND | STARTECH |
