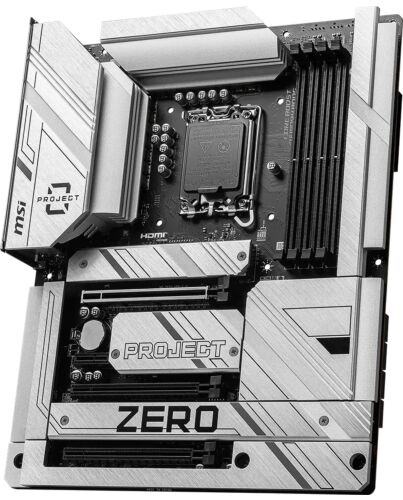

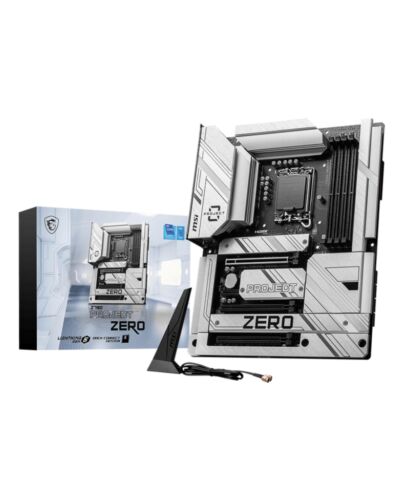

MSI Z790 PROJECT ZERO motherboard Intel Z790 LGA 1700 ATX
£232.32
MSI Z790 PROJECT ZERO, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold, 256 GB, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards.
ABSOLUTE SIMPLICITY
Z790 PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
ABSOLUTE SIMPLICITY
Z790 PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Maximum internal memory supported by processor
256 GB
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
SO-DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)
7200 MHz
Maximum internal memory*
256 GB
Storage controllers
Supported storage drive interfaces*
PCI Express 4.0, PCI Express 5.0
Number of HDDs supported
10
Number of storage drives supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
6
Total number of SATA connectors
6
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
1
Rear panel I/O ports
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
Intel Z790
Audio chip
Realtek ALC897
Audio output channels*
7.1 channels
Product colour
Grey
Motherboard form factor*
ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 10 x64, Windows 11 Enterprise x64
Expansion slots
PCI Express x1 slots
1
PCI Express x16 slots
3
Number of M.2 (M) slots
4
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Additional Information
| EAN/UPC | 4711377154024 |
|---|---|
| MPN | Z790 PROJECT ZERO |
