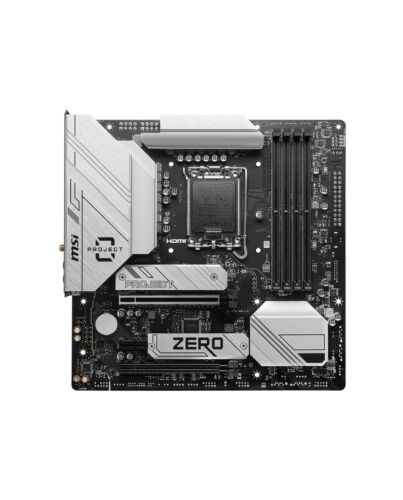

MSI B760M Ptoject Zero Intel B760 LGA 1700 micro ATX
£132.24
MSI B760M Ptoject Zero, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ABSOLUTE SIMPLICITY
B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional
Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional
Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
Key Features
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Audio Boost: Reward your ears with studio grade sound
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
ECC сompatibility
Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Internal I/O
USB 2.0 connectors*
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
Number of COM connectors
1
TPM connector
Yes
Parallel connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
Ethernet LAN (RJ-45) ports*
1
Rear panel I/O ports
PS/2 ports quantity
2
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
tek RTL8111H
Wi-Fi*
No
Features
Motherboard chipset*
Intel B760
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
Number of M.2 (M) slots
2
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.4
Clear CMOS jumper
Yes
System Management BIOS (SMBIOS) version
3.5
Weight & dimensions
Width
243.8 mm
Depth
243.8 mm
Packaging content
Cables included
SATA
Additional Information
| EAN/UPC | 4711377143660 |
|---|---|
| MPN | B760M PROJECT ZERO |
| BRAND | MSI |
