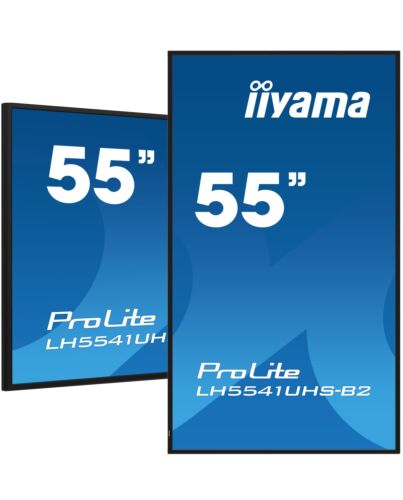

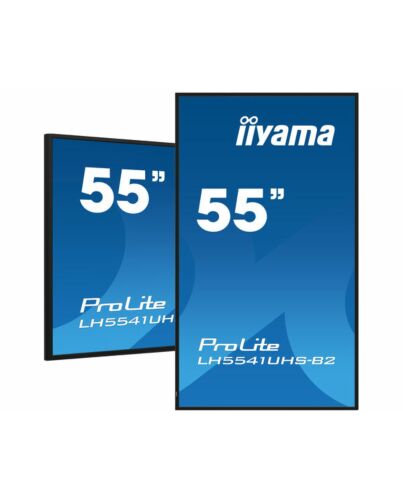

iiyama LH5541UHS-B2 Signage Display Kiosk design 138.7 cm (54.6") LCD 500 cd/m² 4K Ultra HD Black Bu
£633.60
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Set in a slim bezel, the iiyama LH5541UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.
Reasons To Buy
4K

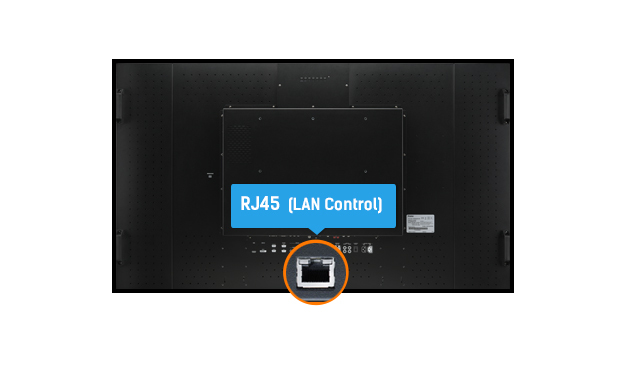

LAN Control
IPS
24/7

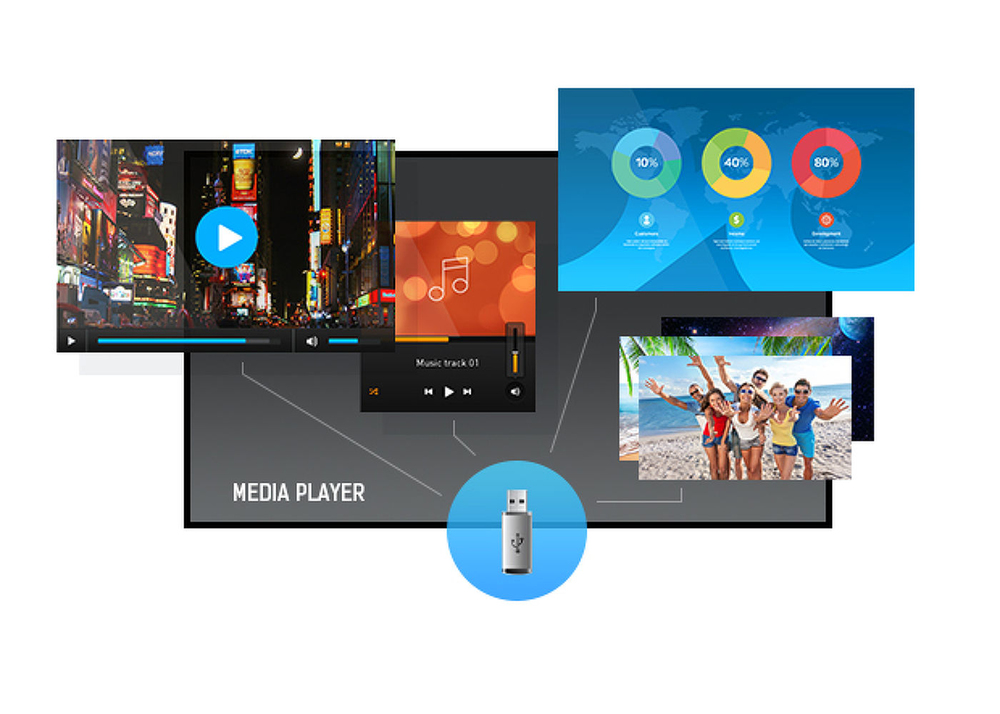

Media player (in pivot not supported)
Specifications
Display
Panel type
IPS
Display diagonal*
138.7 cm (54.6")
Display technology*
LCD
Display resolution*
3840 x 2160 pixels
Display brightness*
500 cd/m²
HD type*
4K Ultra HD
Touchscreen*
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.3155 x 0.3155 mm
Active display area (W x H)
1209.6 x 680.4 mm
Display diagonal (metric)
139 cm
Horizontal scan range
30 - 83 kHz
Native refresh rate
60 Hz
Haze rate
1%
Ports & interfaces
HDMI ports quantity*
3
DVI port*
Yes
VGA (D-Sub) input ports
1
USB ports quantity
1
Ethernet LAN (RJ-45) ports
1
PC Audio in
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Kiosk design
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
400 x 400 mm
Bezel width (bottom)
1.55 cm
Bezel width (side)
1.4 cm
Bezel width (top)
1.4 cm
Bezel colour
Black
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
Number of OSD languages
11
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
139 W
Power consumption (standby)*
0.4 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
444 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system*
Yes
Built-in processor*
Yes
Processor el
V810
Internal memory
2 GB
Internal storage capacity
16 GB
Weight & dimensions
Display width
1237.5 mm
Display depth
55 mm
Display height
710 mm
Display weight
14.3 kg
Width
1237.5 mm
Depth
55 mm
Height
710 mm
Weight
14.3 kg
Packaging data
Package width
1386 mm
Package depth
130 mm
Package height
845 mm
Packaging content
Remote control included
Yes
Batteries included
Yes
Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Logistics data
Harmonized System (HS) code
85285210
Network
Ethernet LAN*
Yes
Wi-Fi*
No
Technical details
Audio in (mini jack)
Yes
Playback media
✓
User controls
picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI es, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
Sustainability certificates
ErP
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide
Yes
Power supply type
Internal
Cable management
Yes
Housing material
Metal
Additional Information
| EAN/UPC | 4948570123544 |
|---|---|
| MPN | LH5541UHS-B2 |
| BRAND | Iiyama |
