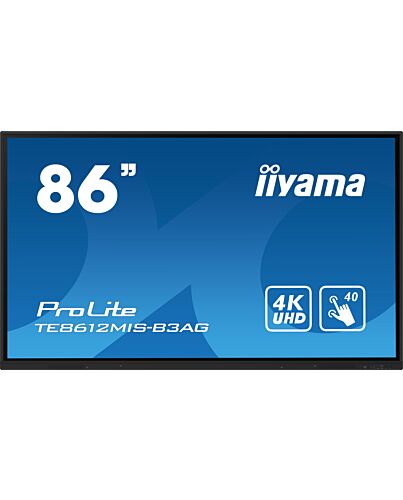

iiyama TE8612MIS-B3AG Signage Display Kiosk design 2.17 m (85.6") LCD Wi-Fi 400 cd/m² 4K Ultra HD Bl
£2,057.88
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TE8612MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for ern workspaces and educational settings. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE8612MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the ern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
Reasons To Buy

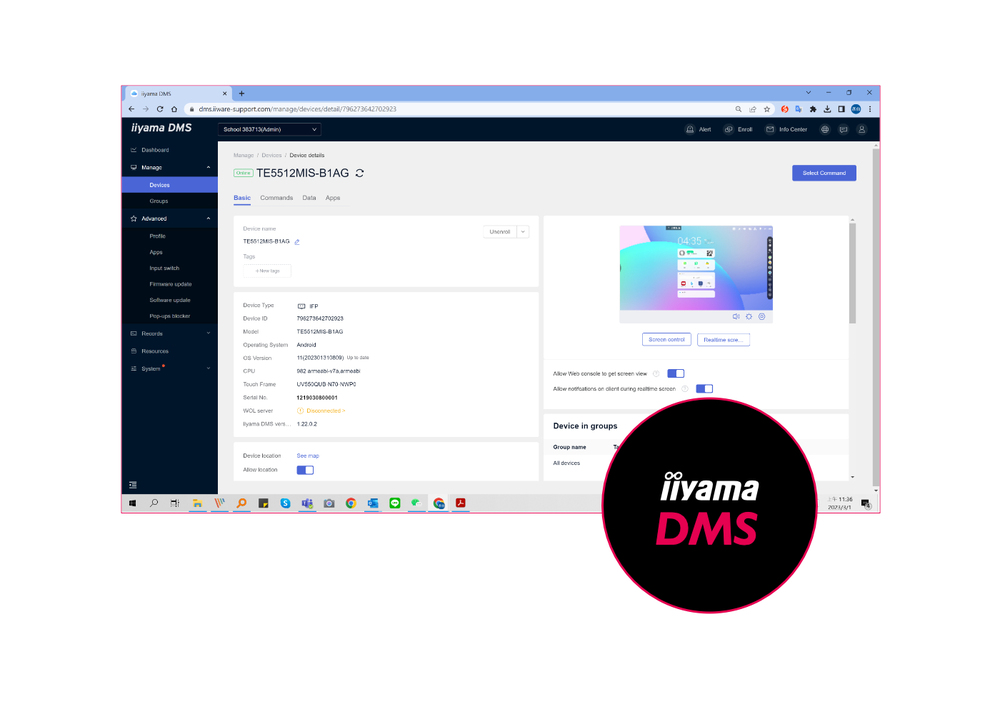

iiyama DMS
iiyama Share
PureTouch-IR
Delivers 1mm Touch accuracy for the smoothest and fastest annotation with 40pt infed Touch technology.Security
Specifications
Display
Panel type
VA
Display diagonal*
2.17 m (85.6")
Display technology*
LCD
Display resolution*
3840 x 2160 pixels
Display brightness*
400 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Yes
Touchscreen technology
PureTouch-IR
Number of simultaneous touchpoints
40
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
4000:1
Contrast ratio (dynamic)
8000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.493 x 0.493 mm
Active display area (W x H)
1895 x 1066 mm
Display diagonal (metric)
217.4 cm
Horizontal scan range
30 - 135 kHz
Native refresh rate
60 Hz
Surface hardness
7H
Glass thickness
3 mm
Glass film
AG/AR Film
Ports & interfaces
HDMI ports quantity*
4
HDMI version
2.0
HDMI input ports quantity
1
HDMI output ports quantity
1
DVI port*
No
VGA (D-Sub) input ports
1
USB port*
Yes
USB ports quantity
5
USB version
3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
3
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
65 W
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
RS-232C
Yes
Remote (IR) input
1
Audio Return Channel (ARC)
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
32 W
Design
Product design*
Kiosk design
Placement supported*
Indoor
Orientation
Horizontal
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
800 x 600 mm
Bezel width (bottom)
3 cm
Bezel width (side)
1.65 cm
Bezel width (top)
1.65 cm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Commercial
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
208 W
Power
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Built-in processor*
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor el
A55
Processor architecture
ARM Cortex-A55
Processor cores
4
Internal memory
8 GB
On-board graphics card el
ARM Mali-G52
Internal storage capacity
64 GB
Operating system installed
Android 11
Weight & dimensions
Display width
1957 mm
Display depth
100 mm
Display height
1160 mm
Display weight
58.6 kg
Width
1957 mm
Depth
100 mm
Height
1160 mm
Weight
58.6 kg
Width (with stand)
1957 mm
Depth (with stand)
100 mm
Height (with stand)
1160 mm
Weight (with stand)
58.6 kg
Packaging data
Package width
2110 mm
Package depth
225 mm
Package height
1283 mm
Package volume
75900 cm³
Package weight
75.9 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Stylus pen
Yes
Number of stylus pens
4
Cables included
AC, USB, HDMI
Wi-Fi ule included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
-20 - 60%
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
Audio in (mini jack)
Yes
Playback media
✓
User controls
general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound e, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display e, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
Sustainability certificates
ErP
Warranty period
5 year(s)
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide
Yes
Bluetooth
Yes
Bluetooth version
5.0
Brightness
350 cd/m²
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570123711 |
|---|---|
| MPN | TE8612MIS-B3AG |
| BRAND | Iiyama |
