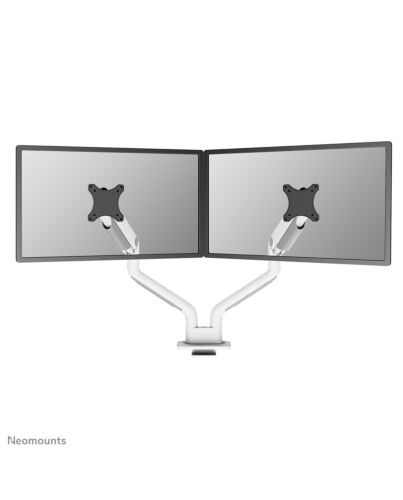

Neomounts DS70S-950WH2 Monitor arm 17-35" - gas spring - Topfix - 180°-stop
£356.41
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts DS70S-950WH2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950WH2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit f the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.
The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount f making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and gmet for quick and easy installation.
The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made f cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount f making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and gmet for quick and easy installation.
The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made f cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Specifications
Mounting
Maximum weight capacity*
18 kg
Minimum screen size*
43.2 cm (17")
Number of displays supported*
2
Maximum weight capacity (per display)*
18 kg
Maximum weight capacity (per curved/ultra-wide display)
15 kg
Maximum screen size*
88.9 cm (35")
Mounting
Clamp/Gmet
Mounting type*
Desk
Minimum VESA mount*
75 x 75 mm
Maximum VESA mount*
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Desk thickness (min)
1 cm
Desk thickness (max)
5.5 cm
Clamp mount desk thickness (max)
5 cm
Gmet mount desk thickness (max)
5.5 cm
Distance to the wall (min)
11.9 cm
Distance to the wall (max)
65.6 cm
Ergonomics
Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
202 - 522 mm
Adjustable depth
Yes
Depth adjustment range
88 - 625 mm
Width adjustment
115.9 cm
Tilt adjustment
Yes
Tilt angle range
-90 - 90°
Swivelling
Yes
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
360°
Pivot angle
-180 - 180°
Number of arms
2
Ergonomics
Cable management
Yes
Design
Housing material
Aluminium
Product colour*
White
Easy to install
Yes
Weight & dimensions
Width
186 mm
Depth
656 mm
Height
579 mm
Weight
6.98 kg
Packaging data
Package width
410 mm
Package depth
124 mm
Package height
496 mm
Package net weight
7.9 kg
Package weight
7.9 kg
Package type
Box
Other features
Minimum weight
1 kg
Width adjustment range
0 - 1159 mm
Warranty period
10 year(s)
Logistics data
Master (outer) case width
260 mm
Master (outer) case length
320 mm
Master (outer) case height
505 mm
Master (outer) case gross weight
16.3 kg
Products per master (outer) case
2 pc(s)
Country of origin
China
Master (outer) case net weight
14 kg
Harmonized System (HS) code
7616991099
Products per pallet (EU)
48 pc(s)
Additional Information
| EAN/UPC | 8717371441555 |
|---|---|
| MPN | DS70S-950WH2 |
| BRAND | NEOMOUNTS |
