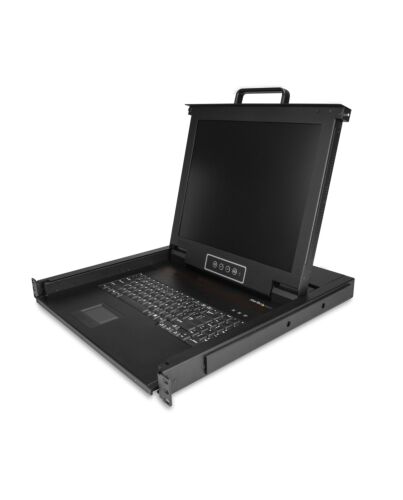

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
£751.04
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height
- 99 key full keyboard with numeric keypad + Trackpad
- Supports VGA and USB
- Integrated Power Supply
Specifications
Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Pixel pitch
0.264 x 0.264 mm
Aspect ratio
5:4
Display type
LCD
Response time
5 ms
Display number of colours
16.78 million colours
Colour depth
8 bit
Technical details
Material
Steel
Mean time between failures (MTBF)
50000 h
Operating relative humidity (H-H)
10 - 80%
Rack mounting
Yes
Daisy chain
No
Key lock
No
IP control
No
LED indicators
Power, Status
Cable length
1.82 m
Compliance certificates
RoHS
Rack capacity
1U
Ports & interfaces
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Certificates
Certification
CE, FCC, PSE, UL
Power
Power consumption (typical)
13 W
AC adapter input voltage
100 - 240 V
Power
Input current
1.5 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
448 mm
Height
471 mm
Depth
42.5 mm
Weight
11.6 kg
Mounting depth (min)
45 cm
Mounting depth (max)
79 cm
Packaging data
Package weight
17.1 kg
Package width
615 mm
Package depth
765 mm
Package height
185 mm
Packaging content
Cables included
KVM
Screws included
Yes
Number of screws
8
Mounting brackets included
Yes
Cage nuts included
Yes
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case width
615 mm
Master (outer) case length
765 mm
Master (outer) case height
185 mm
Products per master (outer) case
1 pc(s)
Additional Information
EAN/UPC | 0065030872522 |
---|---|
MPN | RKCONS1701 |
