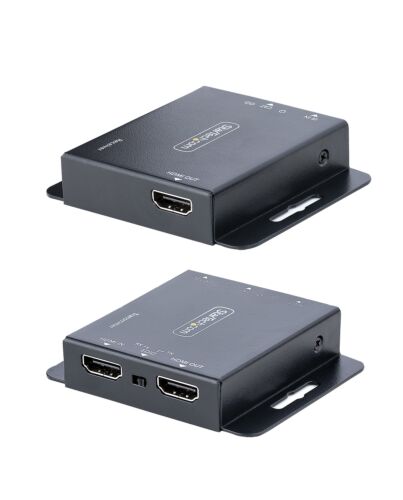

StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control
£109.13
StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable
This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation
The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation
The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- HDMI OVER ETHERNET CABLE: This HDMI Extender over CAT6/5e sends 4K 30Hz up to 130ft (40m) or 1080p up to 230ft (70m) / 7.1ch Audio / 4:4:4 Chroma Subsampling / HDCP 1.4 / Metal Housing with mounting brackets / IR Extension kit incl.
- SINGLE POWER ADAPTER: The power adapter connects to the HDMI Extender Kit's transmitter and powers the receiver for areas where power outlets may be limited; Power is delivered to the receiver over the Ethernet cable using Power over Cable (PoC)
- VERSATILE FUNCTIONALITY: The Transmitter's HDMI output can be used to connect a local display or cascaded to another HDMI extender; The 4K HDMI extender over Ethernet cable is ideal for displaying video over CAT6 for digital signage in malls, stadiums and hospitals
- IR EXTENSION: The HDMI CAT6/5e Extender includes a IR Control Extension Kit with 1x IR Blaster and 1x IR Receiver (IR remote not included); IR Blaster/Receiver have adhesive for easy installion; Control your IR devices from a remote location (receiver)
- EASY INSTALLATION: No IP configuration, software, or drivers required; Durable metal housing and built-on mounting brackets make it ideal for many environments; Point-to-Point transmitter to receiver connection, using a single CAT6/5e cable
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
LED indicators
Link, Power
Bandwidth
10.2 Gbit/s
HDCP
Yes
Material
Metal
Rack mounting
No
Daisy chain
Yes
HDCP version
1.4
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Yes
Power
AC input voltage
100 - 240 V
Operating voltage
12 V
Input current
0.3 A
Output current
1 A
Power consumption (typical)
0.1 W
Power
External power adapter
Yes
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
69 mm
Depth
57 mm
Height
17 mm
Weight
130 g
Packaging data
Package width
200 mm
Package depth
116 mm
Package height
77 mm
Package weight
500 g
Packaging content
AC adapter included
Yes
IR blaster included
Yes
IR receiver included
Yes
Technical details
Compliance certificates
CE, RoHS
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
410 mm
Master (outer) case length
420 mm
Master (outer) case height
370 mm
Products per master (outer) case
30 pc(s)
Additional Information
| EAN/UPC | 65030895156 |
|---|---|
| MPN | EXTEND-HDMI-4K40C6P1 |
