ATEN VC081
£59.30
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

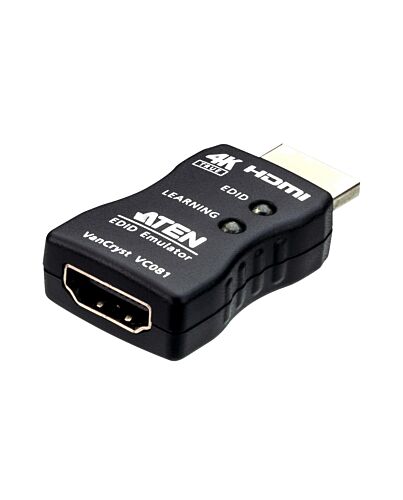

The VC081 True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters. By learning the EDID from the HDMI display and relaying it to the video source, the VC081 can effectively resolve video communication problems that occur when EDID data between the HDMI video source and display are not correctly synchronized. Moreover, after the display’s EDID is learned, the VC081 can be used in place of a monitor to keep a PC or Server awake for remote access via IP.
For product application, the VC081 is an ideal tool for wiring installation in traffic stations and commercial centers.
For product application, the VC081 is an ideal tool for wiring installation in traffic stations and commercial centers.
Key Features
- Effectively learn the EDID from the HDMI display and relay it to the video source
- HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
- LED indicators to show device status
Specifications
Features
Maximum video resolution*
3840 x 2160 pixels
Deep colour support
Yes
Consumer Electronics Control (CEC) support
Yes
Design
Product colour
Black
Housing material
Plastic
LED indicators
Yes
Certification
RoHS
Ports & interfaces
Video port type*
HDMI
Number of video inputs*
1
Ports & interfaces
Number of video outputs*
1
HDCP
Yes
Power
Power consumption (max)
0.25 W
Weight & dimensions
Width
24 mm
Depth
44 mm
Height
11.8 mm
Weight
80 g
Additional Information
| EAN/UPC | 4719264647734. |
|---|---|
| MPN | VC081-AT |
| BRAND | ATEN |
