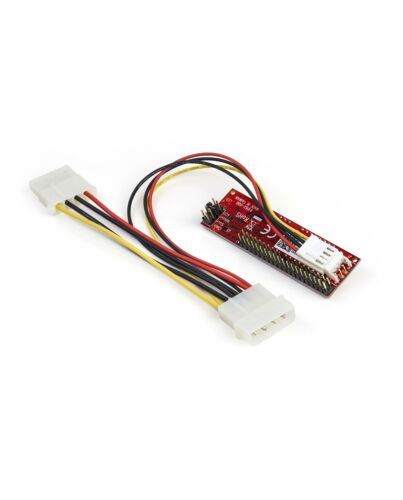

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD
£17.03
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Connect your SATA Hard Drive or Blu-ray/DVD/CD- Drive to an IDE motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD- drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD- drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
Ports & interfaces
Host interface*
IDE
Output interface*
SATA
Connector(s)
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
Design
Internal*
Yes
Product colour
Red
Certification
FCC, CE, TAA, REACH
Features
Chipset
Marvell - 88SA8052
Data transfer rate (max)
0.133 Gbit/s
Logical block addressing (LBA) support
48 bit
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 80 °C
Operating relative humidity (H-H)
15 - 90%
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
20 mm
Weight & dimensions
Depth
75.5 mm
Height
23 mm
Weight
29 g
Packaging data
Manual
Yes
Package width
175 mm
Package depth
145 mm
Package height
33 mm
Package weight
89 g
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
60 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
496 mm
Master (outer) case height
321 mm
Other features
Material
Plastic, Steel
Additional Information
| EAN/UPC | 0065030852258 |
|---|---|
| MPN | IDE2SAT2 |
| BRAND | STARTECH |
