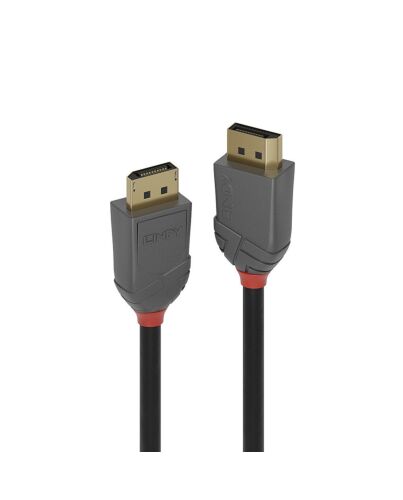

Lindy 5m DisplayPort 1.4 Cable, Anthra Line
£16.61
Lindy 5m DisplayPort 1.4 Cable, Anthra Line, 5 m, DisplayPort, DisplayPort, Male, Male, 4096 x 2160 pixels
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
F the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths f 0.5m to 5m.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths f 0.5m to 5m.
Key Features
- Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit
- Robust ABS housing 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
- DisplayPort 1.2, 4K, 3D, 21.6Gbps, 10 year warranty
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.2
Maximum resolution*
4096 x 2160 pixels
Supported graphics resolutions
4096 x 2160
Supported video es
2160p
Maximum refresh rate
120 Hz
Cable length*
5 m
Connector 1*
DisplayPort
Connector 2*
DisplayPort
Connector 1 gender*
Male
Connector 2 gender*
Male
Product colour*
Black, Grey
Cable material
Tinned copper
Cable shielding
Copper
Jacket material
Polyvinyl chloride (PVC)
Connector housing material
Acrylonitrile butadiene styrene (ABS)
AWG wire size
28
Data transfer rate
21.6 Gbit/s
Contact material
Phosphor bronze
Connector material
Gold
Features
Plug and Play
Yes
Colour sampling
4:2:2
Cable type
Round cable
Nominal attenuation
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operational conditions
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Certificates
Certification
RoHS, REACH, UL
Weight & dimensions
Cable diameter
7.3 mm
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Bend radius (min)
5.84 cm
Packaging data
Package type
Polybag
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888364843 |
|---|---|
| MPN | 36484 |
| BRAND | Lindy |
