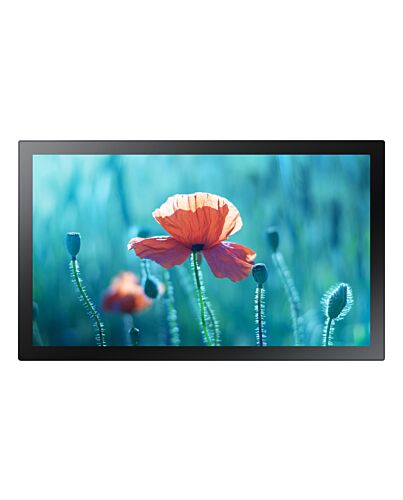

Samsung QB13R-TM Interactive flat panel 33 cm (13") LED Wi-Fi 500 cd/m² Full HD Black Touchscreen Bu
£560.64
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Display
Panel type
ADS
Display diagonal*
33 cm (13")
Display technology*
LED
Display resolution*
1920 x 1080 pixels
Display brightness*
500 cd/m²
HD type*
Full HD
Touchscreen*
Yes
Multi-touch
Yes
Response time
30 ms
Contrast ratio (typical)
600:1
Contrast ratio (dynamic)
10000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.153 x 0.153 mm
Horizontal scan range
30 - 81 kHz
Vertical scan range
48 - 75 Hz
Haze rate
25%
Pixel frequency (max)
594 MHz
Colour gamut
45%
Ports & interfaces
HDMI ports quantity*
1
HDMI version
1.4
HDMI input ports quantity
1
USB port*
Yes
USB ports quantity
1
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
DC-in jack
Yes
Design
Product design*
Interactive flat panel
Placement supported*
Indoor
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Bezel width (bottom)
1.31 cm
Bezel width (side)
1.31 cm
Bezel width (top)
1.31 cm
Bezel colour
Charcoal Black
Performance
Purpose*
Universal
Operating hours (hours/days)
16/7
HDCP
Yes
HDCP version
2.2
Power
Power consumption (typical)*
27.5 W
Power consumption (sleep)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system*
Yes
Computer system type
System on Chip (SoC)
Built-in processor*
Yes
Operating system installed
Tizen 4.0
Weight & dimensions
Display width
322 mm
Display depth
29.8 mm
Display height
193.5 mm
Display weight
1.1 kg
Packaging data
Package width
376 mm
Package depth
248 mm
Package height
132 mm
Package weight
2 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Class B
60950-1, 62368-160950-1, 62368-1
Network
Ethernet LAN*
Yes
Wi-Fi*
Yes
Technical details
Audio out (mini jack)
1
Other features
Flash memory
8000 MB
RS-232 input ports
1
RJ-45 input ports
1
Additional Information
| EAN/UPC | 8806094965476 |
|---|---|
| MPN | LH13QBRTMGCXEN |
| BRAND | Samsung |
