StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Du
£36.79
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot

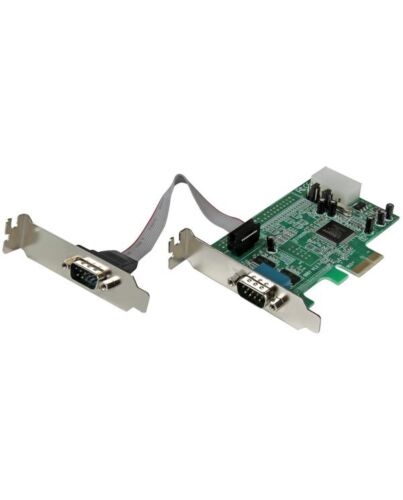

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
- Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
- Single chip design optimizes speed and reliability
- Native single-chip, single lane PCI Express
- Selectable power output on pin 9 for the serial port
- Compliant with PCI Express base specifications revision 1.1a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- 128-byte deep FIFO per transmitter and receiver
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
Serial
Expansion card standard
PCIe 1.1
Serial ports quantity
2
Serial interface type
RS-232
Peripheral (Molex) power connectors (4-pin)
1
Design
Internal*
Yes
Product colour
Green
Features
Chipset
ASIX - MCS9922CV-AA
Baud rate
460.8 Kbit/s
FIFO (First In, First Out)
128 B
Flow Control type
DTR/DSR, RTS/CTS, XON/XOFF
Operational conditions
Operating temperature (T-T)
-10 - 80 °C
Storage temperature (T-T)
-20 - 100 °C
Operating relative humidity (H-H)
5 - 85%
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported
DOS, Windows XP Embedded
Technical details
Compliance certificates
CE, RoHS
Weight & dimensions
Width
80 mm
Depth
105 mm
Height
20 mm
Weight
63.5 g
Packaging data
Cables included
Serial
Mounting brackets included
Yes
Drivers included
Yes
Manual
Yes
Package width
143 mm
Package depth
173 mm
Package height
32 mm
Package weight
180 g
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
50 pc(s)
Master (outer) case width
363 mm
Master (outer) case length
684 mm
Master (outer) case height
320 mm
Additional Information
| EAN/UPC | 0065030841757 |
|---|---|
| MPN | PEX2S553LP |
| BRAND | STARTECH |
