Lenovo ThinkSystem ST50 V2 server 1.92 TB Tower Intel Xeon E E-2324G 3.1 GHz 16 GB DDR4-SDRAM 500 W
£1,675.70
Lenovo ThinkSystem ST50 V2, 3.1 GHz, E-2324G, 16 GB, DDR4-SDRAM, 1.92 TB, Tower
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.

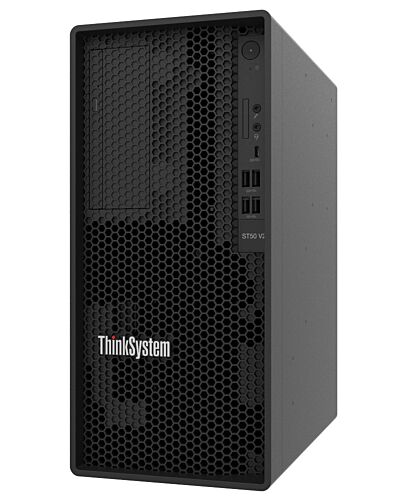

The following figure shows the ThinkSystem ST50 V2.
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.
The following figure shows the ThinkSystem ST50 V2.
Key Features
- Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB
- Three PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance
- Support for a NVMe M.2 drive for OS boot operations
- Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity
- The use of SSDs instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance
Reasons To Buy
Flexible
Lenovo’s XClarity (USB) provisioning manager enables easy setup and upgrades while Intel Active Management Technology (AMT)saves time and reduces costs by monitoring system health and preventing data disruption.
Energy-efficient, quiet, yet powerful
It´s energy-efficient with a TDP of no more than 95W and supports up to 8 core performance. Providing optimal performance for increased productivity and energy cost-savings.
Powerful and high value
The ThinkSystem ST50 V2 boasts the improved operation of the latest Intel® Xeon® E-2300 processors. With a 17% increase in performance the ThinkSystem ST50 V2 offers professional-level capabilities at an entry-level price-point. High value versus a workstation with the benefits of a resilient server.
Specifications
Processor
Processor manufacturer*
Intel
Processor family*
Intel Xeon E
Processor el*
E-2324G
Processor frequency*
3.1 GHz
Processor boost frequency
4.6 GHz
Processor cores
4
Processor cache
8 MB
Motherboard chipset
Intel C256
Number of processors installed
1
Memory
Internal memory*
16 GB
Internal memory type*
DDR4-SDRAM
Memory slots
4x DIMM
ECC
Yes
Memory layout (slots x size)
1 x 16 GB
Maximum internal memory*
128 GB
Storage
Maximum storage capacity*
16 TB
Total storage capacity*
1.92 TB
Number of SSDs installed
2
SSD capacity
960 GB
SSD size
3.5"
Supported SSD sizes
2.5", 3.5"
Number of SSDs supported
2
RAID support*
Yes
Hot-swap
No
Optical drive type*
No
Graphics
On-board graphics card
Yes
On-board graphics card el
Intel UHD Graphics P750
Network
Wi-Fi
No
LAN controller
Intel® I219-LM
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Serial ports quantity
1
DisplayPorts quantity
2
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Design
Chassis type*
Tower
Product colour
Black
Performance
Trusted Platform ule (TPM)
Yes
Trusted Platform ule (TPM) version
2.0
Software
Operating system installed*
No
Compatible operating systems*
Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Processor special features
CPU configuration (max)
1
Power
Redundant power supply (RPS) support*
No
Power supply*
500 W
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
8 - 90%
Operating altitude
0 - 3050 m
Weight & dimensions
Width
170 mm
Depth
316 mm
Height
376 mm
Other features
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 5054444562391 |
|---|---|
| MPN | 7D8JA043EA |
| BRAND | LENOVO |
