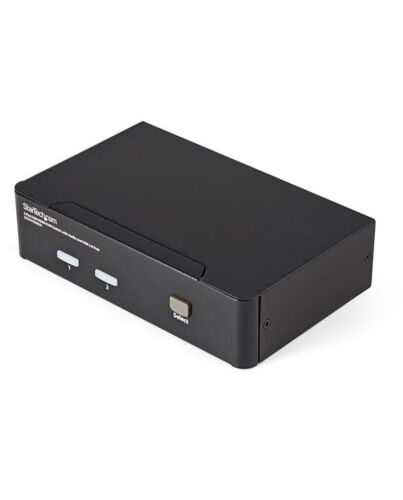

StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub
£184.24
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
Console ports*
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
4
Headphone outputs
3
Number of microphone inputs
3
Performance
HD type*
Full HD
Maximum resolution*
1920 x 1200 pixels
Daisy chain
No
Design
Rack mounting*
No
Product colour*
Black
Mean time between failures (MTBF)
126813 h
Certification
R0HS
Display
On Screen Display (OSD)
No
Power
Input voltage
100 - 240, 12 V
Input current
0.8 A
Output current
1.5 A
Power consumption (typical)
18 W
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
125 mm
Depth
70 mm
Height
40 mm
Weight
634 g
Packaging data
Package width
188 mm
Package depth
250 mm
Package height
100 mm
Package weight
1.1 kg
Packaging content
Manual
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
Connectivity technology
Wired
I/O ports
1x HDMI (F)
4x USB A (F)
6x 3.5mm (F)
2x USB B (F)
2x mini-HDMI (F)
Dimensions (WxDxH)
124.8 x 70 x 40 mm
Ports quantity
2
Power requirements
AC 110 - 240 V
Logistics data
Harmonized System (HS) code
85176200
Additional Information
| EAN/UPC | 0065030837521 |
|---|---|
| MPN | SV231HDMIUA |
| BRAND | STARTECH |
