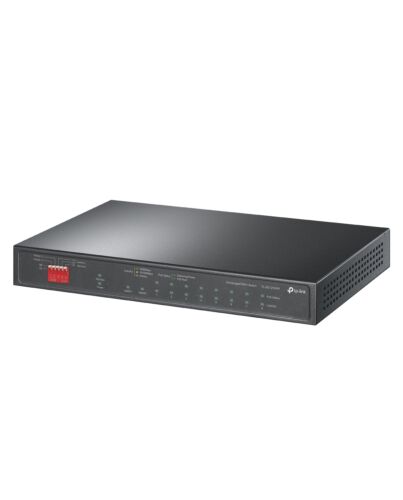

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
£135.50
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Overview
TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.
Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 ……> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ and 2-Port PoE++ TL-SG1210PP is a great selection for expanding your network.
TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.
Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 ……> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ and 2-Port PoE++ TL-SG1210PP is a great selection for expanding your network.
Key Features
- 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
- With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- Plug and Play, no configuration and installation required
- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
10
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
10
Combo SFP ports quantity
1
Network
Networking standards*
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Data transmission
Switching capacity*
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table*
4000 entries
Store-and-forward
Yes
Security
IGMP snooping
Yes
Design
Rack mounting*
No
Product colour
Black
Housing material
Steel
LED indicators
Yes
Performance
Fanless
Yes
Power
Power source*
DC/PoE
Power
Power supply included*
Yes
Number of power supply units
1
AC input voltage
90 - 220 V
AC input frequency
50 Hz
Input current
2.43 A
Input voltage
53.5 V
Power consumption (max)
144.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
2
Power over Ethernet 4PPoE (PoE++) ports quantity
6
Total Power over Ethernet (PoE) budget
123 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
482.17 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
Cables included
AC
User guide
Yes
Packaging data
Package type
Box
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 4895252500356 |
|---|---|
| MPN | TL-SG1210PP |
| BRAND | TP-LINK |
