Plugable Technologies 12-in-1 USB C Triple Monitor Docking Station, Triple 4K Displays with 3x HDMI or 3x DisplayPort, Compatible with Mac, Windows, Thunderbolt, USB4, USB-C (60W PD, 6x USB Ports, Ethernet)

£228.56
Plugable Technologies 12-in-1 USB C Triple Monitor Docking Station, Triple 4K Displays with 3x HDMI or 3x DisplayPort, Compatible with Mac, Windows, Thunderbolt, USB4, USB-C (60W PD, 6x USB Ports, Ethernet), Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 60 W, 3.5 mm, 10,100,1000 Mbit/s, 1000BASE-T
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Plugable’s 12-in-1 USB-C Triple 4K Docking Station Gives You Access to 3x 4K Screens—All Through a Single USB-C Port
Instantly turn your Windows, ChromeOS, or Mac laptop into a multi-monitor desktop—by connecting a single cable—with the Plugable USB-C Triple 4K HDMI and DisplayPort Docking Station.

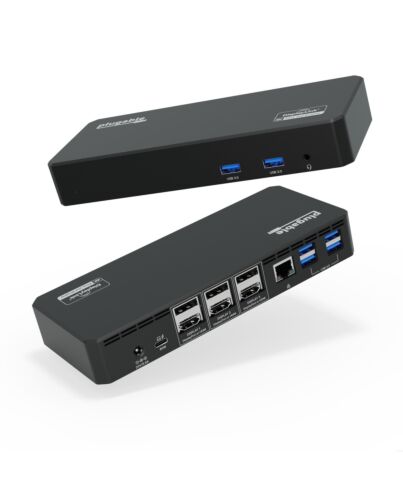

The Plugable UD-6950PDZ Triple Display Docking Station connects to a supported system using the included USB-C cable and provides the ability to connect up to three additional HDMI or DisplayPort displays, provides up to 60W of USB-C Power Delivery, six USB 3.0 ports, a wired Gigabit Ethernet port, and 3.5mm combination analog audio input/output jack.

When attached to a fully compatible USB-C, USB4 or Thunderbolt system, the UD-6950PDZ supports Windows 10 and 11+, macOS 11+, and Intel or AMD Chromebooks with ChromeOS 100+. Linux is not supported.

HDMI or DisplayPort for Each Display
With one USB-C cable connected to the dock, overcome the limited number of display outputs and ports on your device. This dock connects up to three external displays on supported host computers.

Three pairs of DisplayPort and HDMI outputs, each supporting a single display up to a 4K resolution. This docking station provides both DisplayPort and HDMI outputs, no need for an external adapter or confusing one-way adapter cables, use the video cables provided with your display to connect to this DisplayPort or HDMI docking station.

Will It Charge My Laptop
The UD-6950PDZ provides 60W charging to laptops that support Power Delivery via their USB-C / Thunderbolt ports.

Typically 60W is sufficient for charging compatible systems. While most laptops will charge seamlessly, some models may benefit from using their original power cord if they require higher charging rates.

A Powerful Performer
With the UD-6950PDZ, you’re not just adding three displays, you’re also getting a whole host of extra ports. Starting with the three Display outputs enabling up to three 4K displays at 60Hz in any configuration of HDMI and/or DisplayPort.

For computers that only support one display like the M1, M2 and M3 MacBooks, the UD-6950PDZ laptop dock has you covered with DisplayLink technology. Just a heads up, you’ll need to download a DisplayLink driver to get full functionality.

Compatibility
Compatible with: Windows 11 & 10; Intel, M1, M2, M3 Macs with macOS 11 or newer and USB Type-C; ChromeOS 100.x or newer with Intel or AMD based Chromebooks.

And it doesn’t matter which connection you’re using, this laptop docking station is compatible with: USB-C with Alternate Mode and Power Delivery, USB4, Thunderbolt 3, or Thunderbolt 4. This docking station will work with your notebook computer setup.

DisplayLink Driver installation required.
HDCP (High-bandwidth Digital Content Protection) required for streaming copy-protected content from Netflix, iTunes, etc, is not supported

Key Features

  • Get Connected—This USB C docking station: three 4K displays with either HDMI or DisplayPort, six USB 3.0 ports for a wide range of down-stream devices, Ethernet for reliable internet connection, and 3.5mm TRRS audio for headphones or headset
  • Triple 4K—Ditch the adapters, with 3x HDMI ports and 3x DisplayPort ports for flexible monitor connectivity, connect three screens up to 4K 60Hz with USB-C, USB4, and Thunderbolt systems, even if your computer can only normally support one like the M1, M2, or M3 Mac
  • Compatibility—Triple display docking station supports USB Type-C, USB4, and Thunderbolt computers with Windows 10 or 11, macOS 11+, and ChromeOS v100+. Manual driver installation required on Mac
  • 60W Charging—Leave your power cord in the bag. If your laptop supports USB-C PowerDelivery, 60W charging provided by this USB C dock will supply the power your laptop needs to keep you working for the whole day

Specifications

Ports & interfaces

Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
6
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
60 W
HDMI ports quantity*
3
HDMI version
2.0
DisplayPorts quantity
3
DisplayPort version
1.2
Combo headphone/mic port
Yes
Headphone outputs*
1
Headphone connectivity
3.5 mm
DC-in jack
Yes

Network

Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-T

Performance

Card reader integrated*
No

Performance

Data transfer rate
5 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
Product colour*
Black
LED indicators
Yes

Power

Compatible power plug types
UK

Weight & dimensions

Width
200 mm
Depth
85 mm
Height
31 mm
Weight
295.4 g

Packaging content

Cables included
USB Type-C to USB Type-C
AC adapter included
Yes
Quick start guide
Yes

Other features

Chipset
DisplayLink - DL-6950

Additional Information

More Information
EAN/UPC 819927013068
MPN UD-6950PDZ-UK
BRAND Plugable
