Neomounts DS75S-950BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
£323.92
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

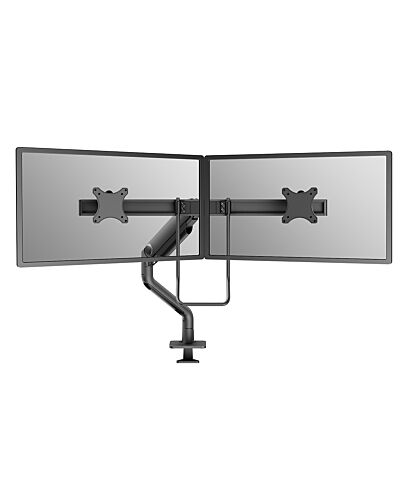

The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit f the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.
The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and gmet for quick and easy installation.

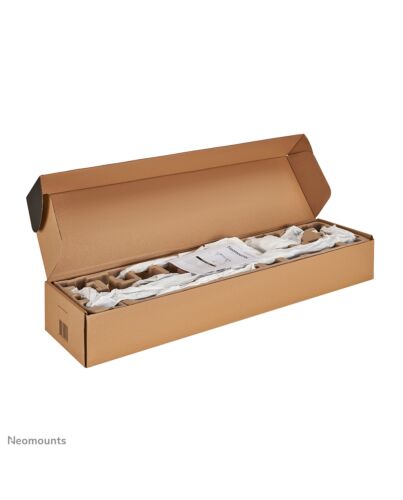

The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made f cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and gmet for quick and easy installation.
The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made f cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
Specifications
Mounting
Maximum weight capacity*
8 kg
Minimum screen size*
43.2 cm (17")
Number of displays supported*
2
Maximum weight capacity (per display)*
8 kg
Maximum screen size*
81.3 cm (32")
Mounting
Clamp/Gmet
Mounting type*
Desk
Minimum VESA mount*
75 x 75 mm
Maximum VESA mount*
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Desk thickness (min)
1 cm
Desk thickness (max)
5.5 cm
Clamp mount desk thickness (max)
5 cm
Gmet mount desk thickness (max)
5.5 cm
Distance to the wall (min)
20.4 cm
Distance to the wall (max)
74.1 cm
Ergonomics
Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
191 - 527 mm
Adjustable depth
Yes
Depth adjustment range
173 - 710 mm
Width adjustment
107.4 cm
Tilt adjustment
Yes
Tilt angle range
-60 - 60°
Swivelling
Yes
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
360°
Pivot angle
-180 - 180°
Cable management
Yes
Design
Housing material
Aluminium
Product colour*
Black
Easy to install
Yes
Weight & dimensions
Width
833 mm
Depth
739 mm
Height
1085 mm
Weight
5.76 kg
Packaging data
Package width
222 mm
Package depth
120 mm
Package height
887 mm
Package net weight
7.1 kg
Package weight
7.1 kg
Package type
Box
Other features
Minimum weight
1 kg
Width adjustment range
0 - 1074 mm
Warranty period
10 year(s)
Logistics data
Master (outer) case width
240 mm
Master (outer) case length
260 mm
Master (outer) case height
905 mm
Master (outer) case gross weight
14.9 kg
Products per master (outer) case
2 pc(s)
Country of origin
China
Master (outer) case net weight
11.1 kg
Harmonized System (HS) code
7616991099
Products per pallet (EU)
36 pc(s)
Additional Information
| EAN/UPC | 8717371441579 |
|---|---|
| MPN | DS75S-950BL2 |
| BRAND | NEOMOUNTS |
