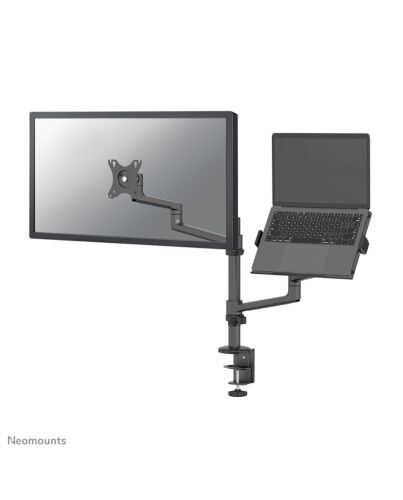

Neomounts DS20-425BL2 Monitor arm with laptop holder 17-27" - space saving
£131.35
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts DS20-425BL2 NEXT Lite is a full motion desk mount for screens up to 27" and laptops up to 17,3" with a maximum weight capacity of respectively 8 and 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your screen and laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away f the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS20-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and gmet.
The packaging of the NEXT Lite is 100% plastic free and entirely made f cardboard and paper.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away f the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS20-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and gmet.
The packaging of the NEXT Lite is 100% plastic free and entirely made f cardboard and paper.
Specifications
Mounting
Maximum weight capacity*
8 kg
Minimum screen size*
43.2 cm (17")
Number of displays supported*
1
Maximum weight capacity (per display)*
8 kg
Maximum screen size*
68.6 cm (27")
Mounting
Clamp/Gmet
Mounting type*
Desk
Minimum VESA mount*
75 x 75 mm
Maximum VESA mount*
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Desk thickness (min)
1 cm
Desk thickness (max)
8 cm
Distance to the wall (min)
16.2 cm
Distance to the wall (max)
49.4 cm
Ergonomics
Height adjustment
Yes
Height adjustment range
275 - 555 mm
Adjustable depth
Yes
Depth adjustment range
66 - 398 mm
Width adjustment
33.2 cm
Tilt angle range
-30 - 90°
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
360°
Cable management
Yes
Design
Housing material
Steel
Product colour*
Black
Weight & dimensions
Width
966 mm
Depth
494 mm
Height
611 mm
Weight
4.55 kg
Packaging data
Package width
233 mm
Package depth
150 mm
Package height
442 mm
Package net weight
5.5 kg
Package weight
5.5 kg
Package type
Box
Other features
Adjustable
Yes
Width adjustment range
0 - 332 mm
VESA mounting
Yes
Technical details
Product type
Notebook & monitor arm
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
473 mm
Master (outer) case height
465 mm
Master (outer) case gross weight
17.1 kg
Products per master (outer) case
3 pc(s)
Country of origin
China
Master (outer) case net weight
13.7 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
63 pc(s)
Additional Information
| EAN/UPC | 8717371449865 |
|---|---|
| MPN | DS20-425BL2 |
| BRAND | NEOMOUNTS |
