Components

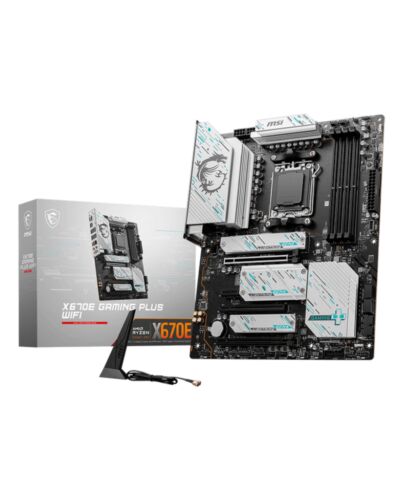

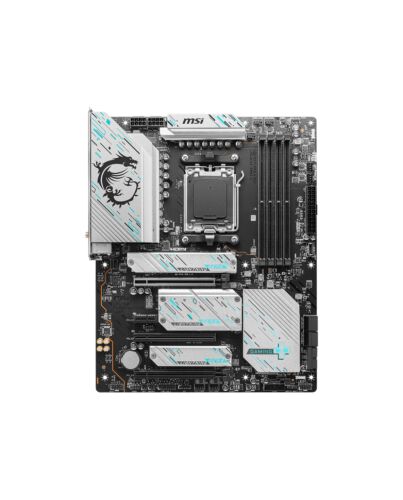

MSI X670E GAMING PLUS WIFI motherboard AMD X670 Socket AM5 ATX
£206.62
MSI X670E GAMING PLUS WIFI, AMD, Socket AM5, DDR5-SDRAM, 192 GB, DIMM, Dual-channel
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Key Features
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Maximum internal memory*
192 GB
Storage controllers
Supported storage drive interfaces*
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Graphics
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
3
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
S/PDIF out port
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
tek RTL8125-BG
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
AMD X670
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
Aluminium, Black
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
4
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Additional Information
| EAN/UPC | 4711377170345 |
|---|---|
| MPN | X670E GAMING PLUS WIFI |
| BRAND | MSI |
