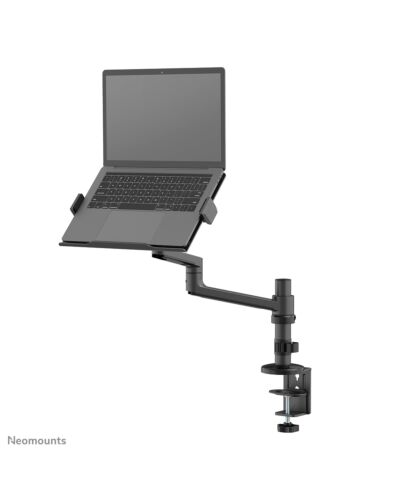

Neomounts DS20-425BL1 Laptop holder monitor arm 11.6-17.3" - space saving
£80.88
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts DS20-425BL1 NEXT Lite is a full motion desk mount for laptops up to 17,3" with a maximum weight capacity of 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specifications
Design
Product type*
Laptop arm
Product colour*
Black
Material
Steel
Minimum notebook screen size compatibility
29.5 cm (11.6")
Maximum notebook screen size compatibility
43.9 cm (17.3")
Number of devices supported
1
Maximum weight capacity
5 kg
Mounting
Clamp/Grommet
Ergonomics
Adjustable
Yes
Height adjustment
Yes
Height adjustment range
180 - 385 mm
Width adjustment range
0 - 413 mm
Adjustable depth
Yes
Depth adjustment range
162 - 494 mm
Swivel angle range
-90 - 90°
Tilt angle range
-30 - 90°
Rotating
Yes
Angle of rotation
360°
Distance to the wall (max)
49.4 cm
Distance to the wall (min)
16.2 cm
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Cable management
Yes
Weight & dimensions
Width
465 mm
Depth
494 mm
Height
641 mm
Weight & dimensions
Weight
3.64 kg
Desk thickness (max)
8 cm
Desk thickness (min)
1 cm
Packaging data
Package net weight
4.4 kg
Package width
233 mm
Package depth
150 mm
Package height
442 mm
Package weight
4.4 kg
Package type
Box
Features
Lockable
No
Technical details
Mounting type
Desk
Country of origin
China
Logistics data
Master (outer) case width
455 mm
Master (outer) case length
320 mm
Master (outer) case height
490 mm
Master (outer) case gross weight
18.5 kg
Products per master (outer) case
4 pc(s)
Master (outer) case net weight
14.6 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
56 pc(s)
Other features
Number of displays supported
1
Additional Information
| EAN/UPC | 8717371449858 |
|---|---|
| MPN | DS20-425BL1 |
| BRAND | NEOMOUNTS |
