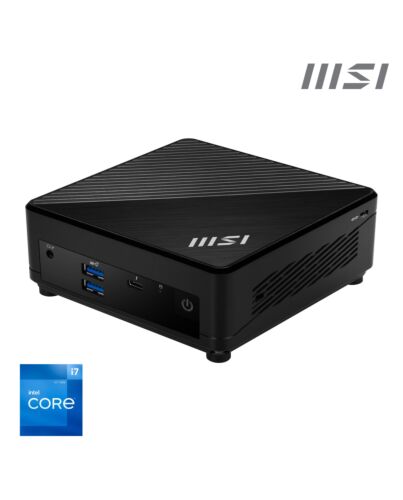

MSI Cubi 5 12M Intel Core i7 1255U Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), IRIS XE Graphics/ThunderBolt 4/Type C/HDMI/DisplayPort/Dual LAN/WiFi 6E/BT 5.3/VESA
£435.16
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"Cubi 5 12M: The Energy Efficient Mini-PC
The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.
Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."
The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.
Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."
Key Features
- Up to 12th Gen Intel® Core™ i7 Processors
- Support up to 8K UHD Display
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
- Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- Experience 75% lower latency with WiFi 6E technology(optional)
- FW TPM design secures your confidential data with encryption keys
- Supports standard VESA-mount
Specifications
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor generation
12th gen Intel® Core™ i7
Processor model
i7-1255U
Processor cores
10
Processor threads
12
Processor boost frequency
4.7 GHz
Performance cores
2
Efficient cores
8
Built-in processor*
Yes
Processor lithography
14 nm
Performance-core boost frequency
4.7 GHz
Efficient-core boost frequency
3.5 GHz
Processor cache
12 MB
Thermal Design Power (TDP)
15 W
Memory
Memory slots type*
SO-DIMM
Number of memory slots*
2
Maximum internal memory
64 GB
Supported memory clock speeds
3200 MHz
Memory channels
Dual-channel
Storage
Supported storage drive types*
HDD & SSD
Storage drive sizes supported*
2.5,M.2
SSD form factor
2.5"
Storage drive interface
M.2, Serial ATA III
NVMe
Yes
Number of storage drives supported
2
Graphics
On-board graphics card*
Yes
Graphics card family
Intel
On-board graphics card model
Intel Iris Xe Graphics
Number of displays supported
3
Audio
Built-in speaker(s)*
No
Network
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN*
Yes
Wi-Fi*
Yes
LAN controller
Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity*
1
HDMI version
2.0b
DVI port
No
DisplayPorts quantity
1
DisplayPort version
1.4
Combo headphone/mic port
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
Thunderbolt 4 ports quantity
1
DC-in jack
Yes
Expansion slots
Number of M.2 (M) slots
1
Design
Chassis type*
0.66L sized PC
Product colour*
Black
Cooling type*
Active
On/off switch
Yes
LED indicators
Yes
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Product type*
Mini PC barebone
Performance
Motherboard form factor
NUC
Motherboard chipset
Intel SoC
Number of processors supported
1
Certificates
Certification
FCC, CB/CE, UL & CUL, VCCI, RCM
Software
Operating system installed
No
Power
Power supply type*
External AC adapter
Power supply
65 W
Number of power supply units
1
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
124 mm
Depth
124 mm
Height
53.7 mm
Weight
590 g
Package width
221 mm
Package depth
506 mm
Package height
469 mm
Package weight
1.33 kg
Packaging content
Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
Drivers included
Yes
Display included
No
Mouse included
No
Keyboard included
No
Other features
Country of origin
China
Warranty period
2 year(s)
Additional Information
| EAN/UPC | 4711377028370 |
|---|---|
| MPN | CUBI 5 12M I7 1255U BB |
