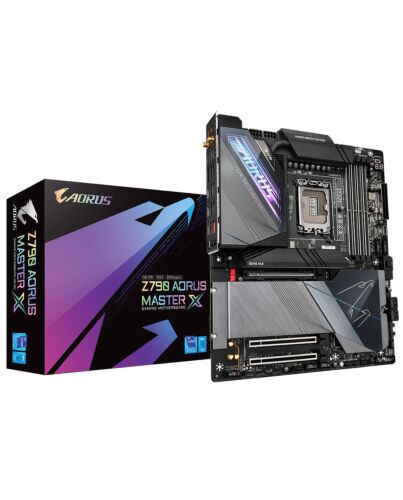

GIGABYTE Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 826
£341.42
GIGABYTE Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x PCIe 5.0 + 4x PCIe 4.0 M2, 10GbE LAN, Wi-Fi 7, USB 3.2 Gen 2x2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports Intel Core 14th and 13th processors
- Digital direct 20+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory ule support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
- Fast Networking：10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：DP, Front USB-C 10Gb/s, Front & Dual Rear USB-C 20Gb/s
- DTS:X® Ultra Audio：ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors
1
Supported processor sockets
LGA 1700
Maximum internal memory supported by processor
192 GB
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Supported memory clock speed (max)
8266 MHz
Maximum internal memory*
192 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
9
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Discrete graphics support
Yes
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
8
EPS power connector (8-pin)
Yes
TPM connector
Yes
Thunderbolt headers
2
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
7
USB 3.2 Gen 2x2 Type-C ports quantity
2
Ethernet LAN (RJ-45) ports*
1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
Digital audio optical out
1
WiFi-AP antenna jack
2
USB connector type
USB Type-A, USB Type-C
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Marvell AQtion AQC113C
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
Intel Z790 Express
Audio chip
tek ALC1220-VB
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
Extended ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
5
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
Taiwan
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
3.46 kg
Weight & dimensions
Width
305 mm
Depth
260 mm
Height
35 mm
Packaging content
Cables included
SATA
Batteries included
Yes
Antenna included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331857585 |
|---|---|
| MPN | Z790 AORUS MASTER X |
| BRAND | Gigabyte |
