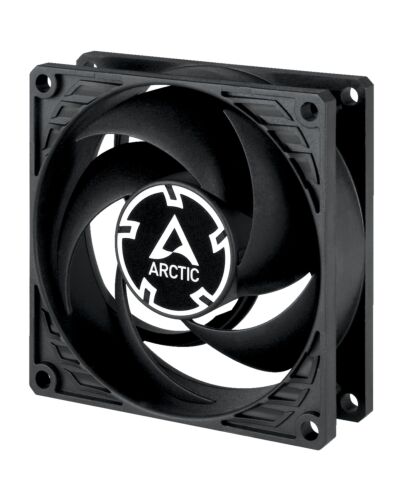

ARCTIC P8 Max - High-Performance 80 mm PWM Fan

Components

ARCTIC P8 Max - High-Performance 80 mm PWM Fan

Be the first to review this product
£5.23
ARCTIC P8 Max - High-Performance 80 mm PWM Fan, Fan, 8 cm, 0.6 sone, 67.96 m³/h, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Reasons To Buy

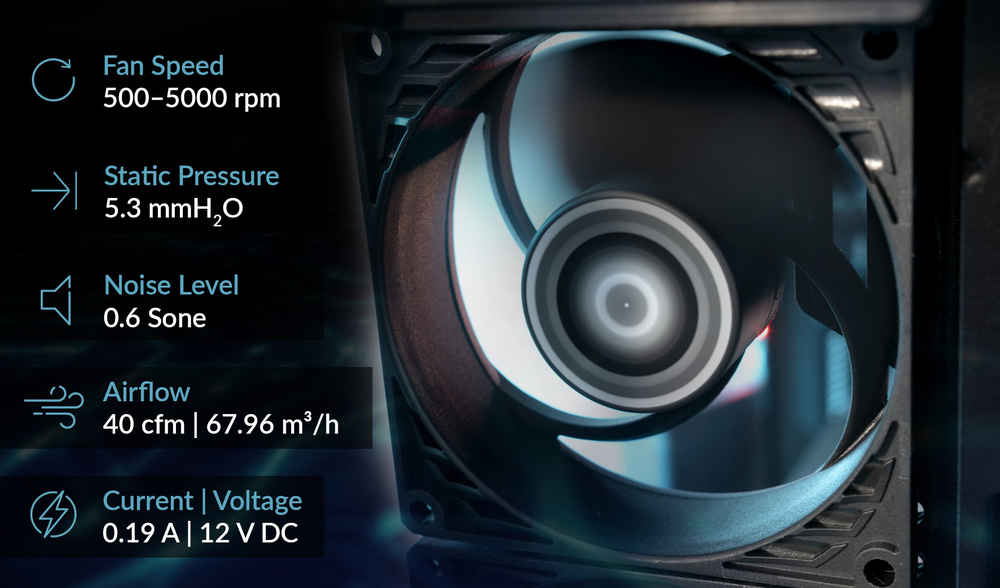

Powerful Cooling

IMAGE-NOT-AVAILABLE
The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.

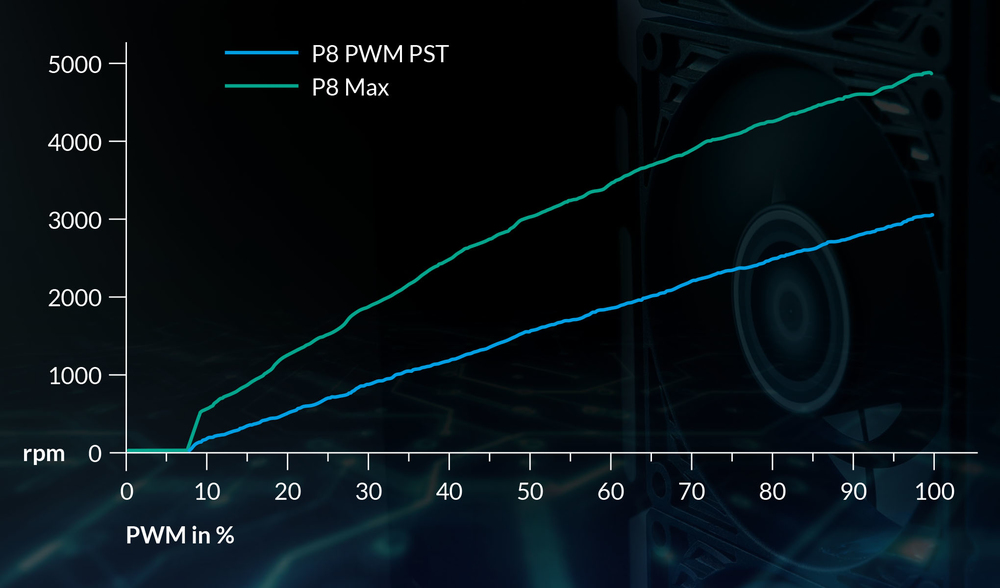

Extremely Wide Speed Range

IMAGE-NOT-AVAILABLE
The P8 Max enables precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can be adapted to the individual cooling requirements. The P8 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.

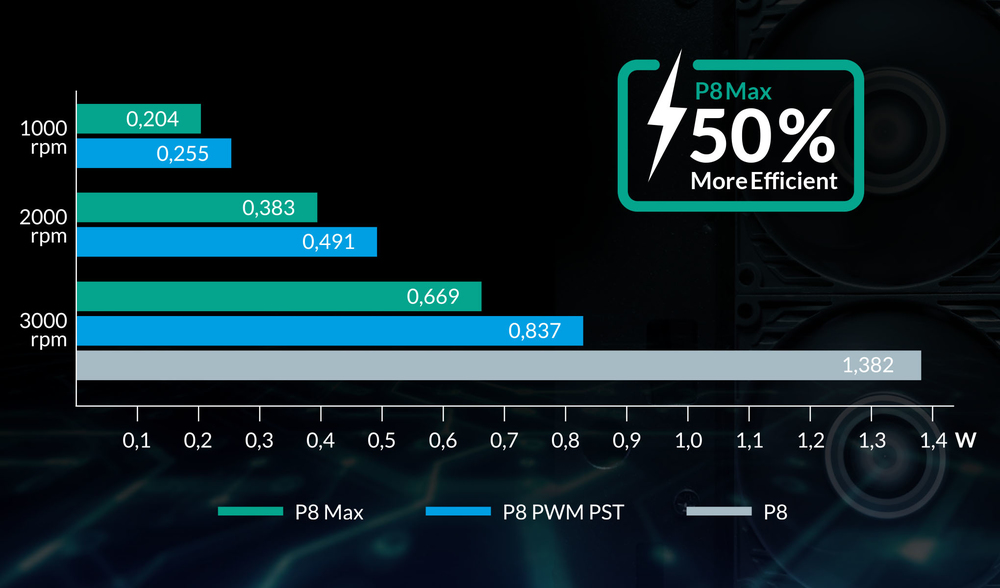

Low Power Consumption

IMAGE-NOT-AVAILABLE
The P8 Max is distinguished by its extremely high efficiency. At a speed of 3000 rpm and a voltage of 12 volts, it requires only 0.669 watts, which corresponds to a current of 0.06 amps.

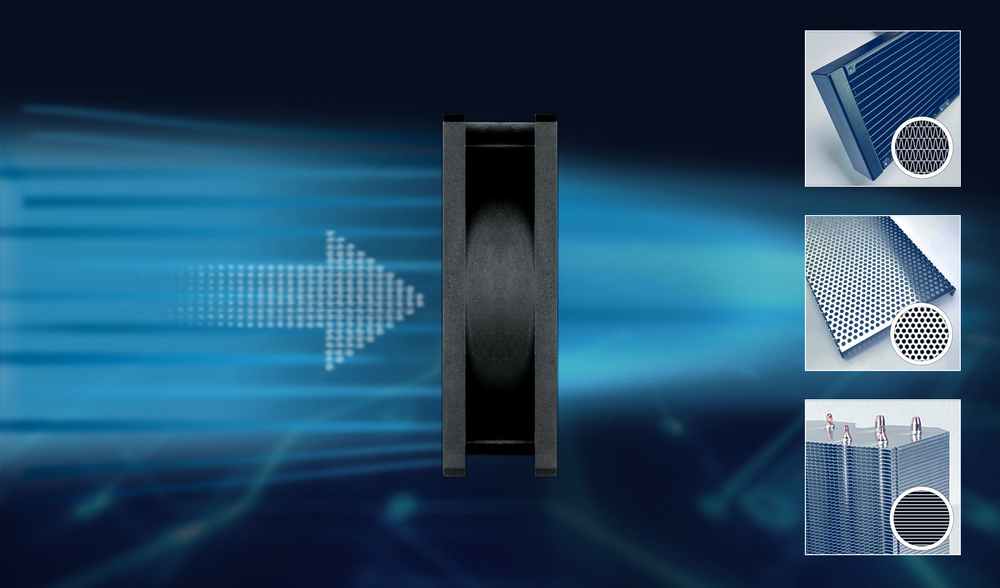

Optimised for High Static Pressure

IMAGE-NOT-AVAILABLE
The P8 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P8 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.

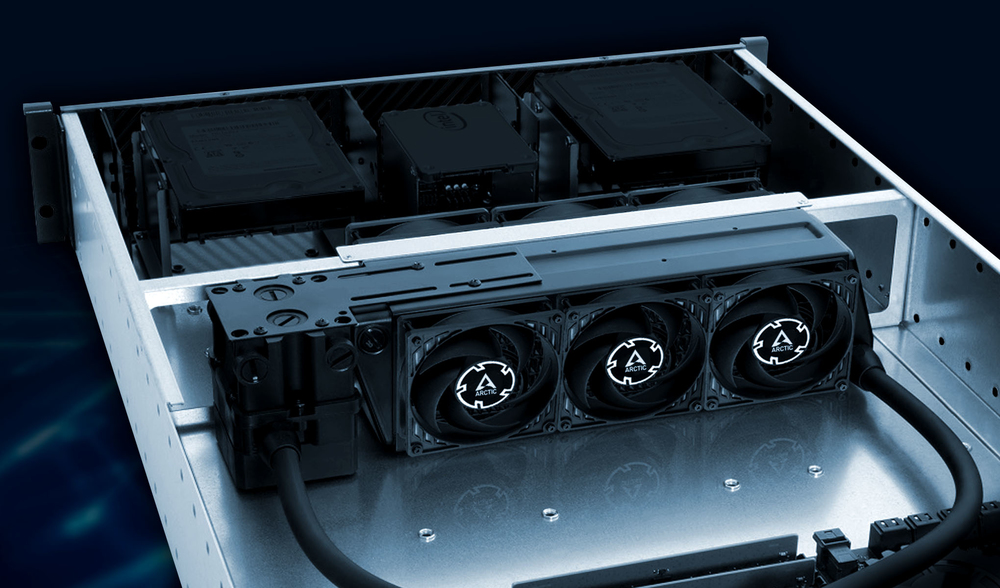

Optimal for 2U Server Rack

IMAGE-NOT-AVAILABLE
Server cases such as 2U racks usually have a high component density, which means a high airflow is needed to effectively dissipate heat. A high static pressure capacity is therefore important to direct the airflow through the tight ducts inside the case. The P8 Max is ideal for 2U rack cases with 2-height units.

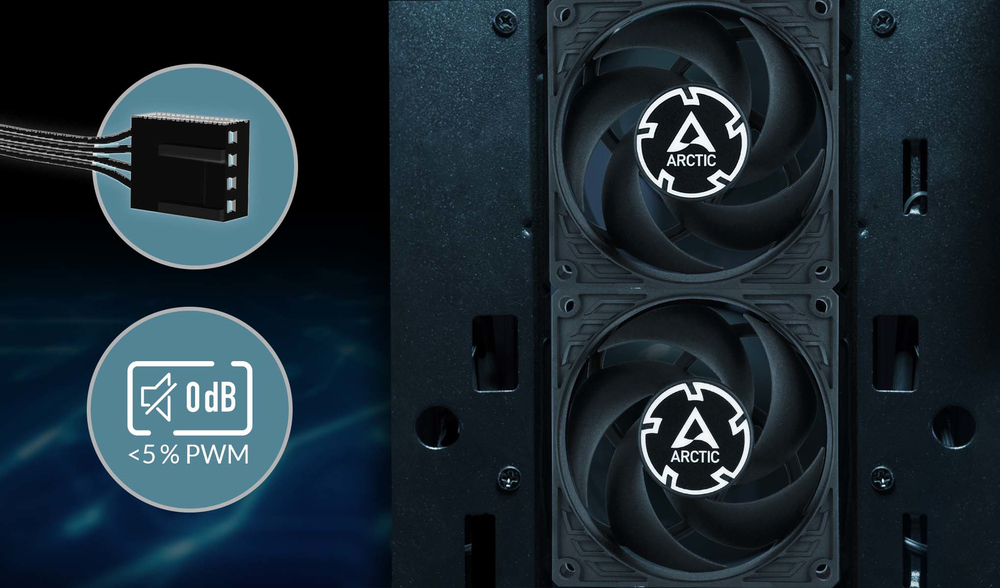

0 dB Mode - Zero rpm

IMAGE-NOT-AVAILABLE
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P8 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

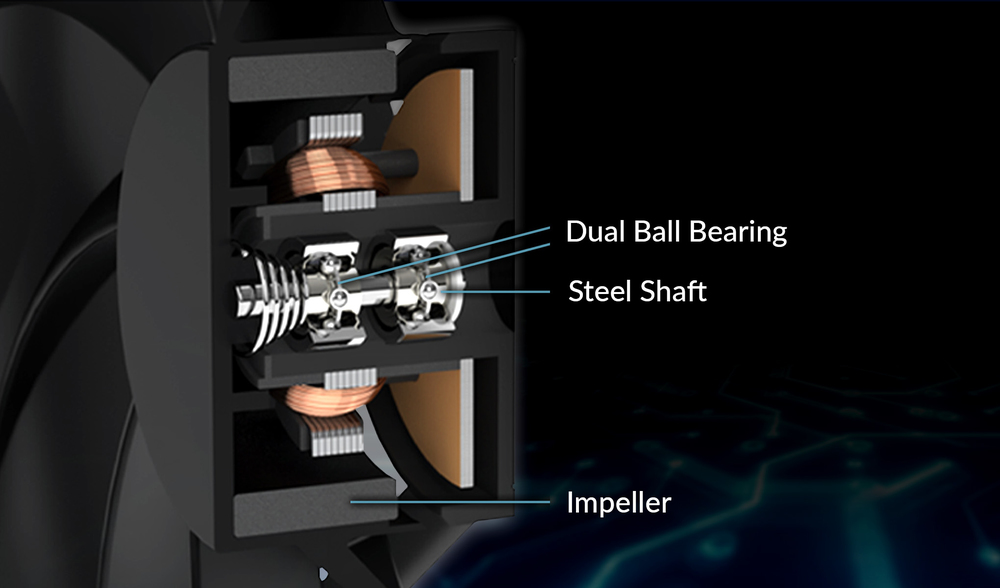

Designed for Continuous Operation

IMAGE-NOT-AVAILABLE
The ball bearing of the Japanese manufacturer NMB ensures a particularly long service life. Compared to sleeve bearings, ball bearings produce a significantly higher bearing noise. Therefore, the P8 Max is the perfect choice if you want to ensure permanent operation at high speeds. For silent enthusiasts, we recommend models with sleeve bearings, such as the P8 PWM PST.

Quality You Can Rely On

IMAGE-NOT-AVAILABLE
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a six years manufacturer's guarantee on the P8 Max.

Specifications

Performance

Suitable location*
Computer case
Type*
Fan
Fan diameter
8 cm
Noise level
0.6 sone
Maximum airflow
40 cfm
Airflow
67.96 m³/h
Pulse-width modulation (PWM) support
Yes
Fan bearing technology
Double ball bearing
Quantity per pack
1 pc(s)
Fan speed (min)
500 RPM
Fan speed (max)
5000 RPM
Fan static pressure
5.3 mmH2O
Fan's mean time to failure (MTTF)
500000 h
Operating temperature (T-T)
0 - 40 °C

Design

Product colour*
Black
Number of fans
1 fan(s)
Number of fan blades
5
Fan connector
4-pin

Design

Rack capacity
2U

Power

Starting voltage
3.2 V
Fan voltage
12 V
Fan current
0.19 A

Weight & dimensions

Fan dimensions (W x D x H)
80 x 80 x 25 mm
Fan weight
84 g
Cable length
0.4 m
Package width
82.5 mm
Package depth
82.5 mm
Package height
26 mm
Package weight
89 g

Packaging content

Mounting kit
Yes
Screws included
Yes

Other features

Country of origin
Hong Kong

Additional Information

More Information
EAN/UPC 4895213704090
MPN ACFAN00286A
BRAND ARCTIC
