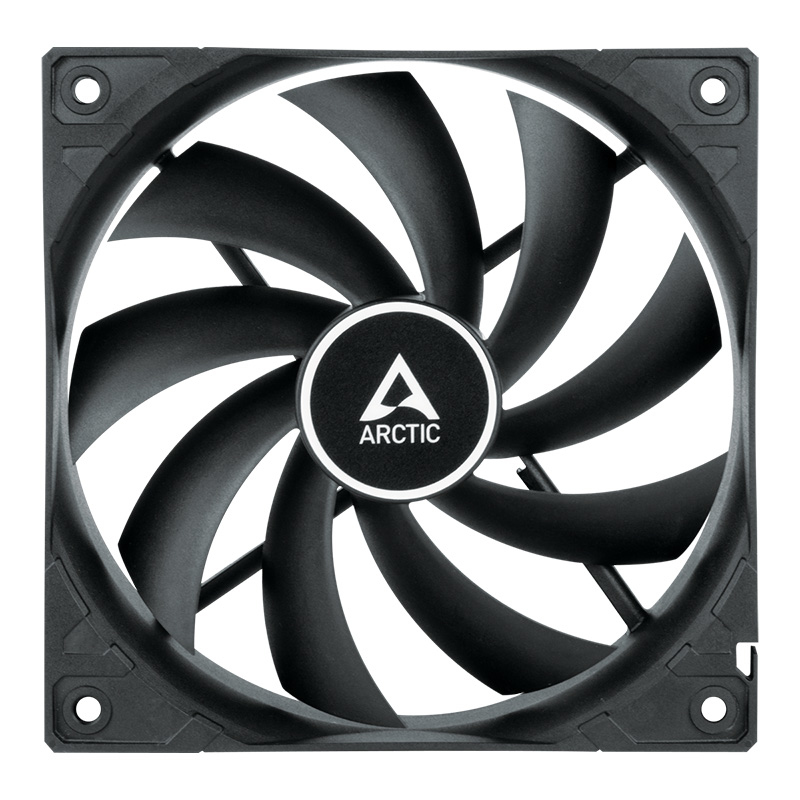

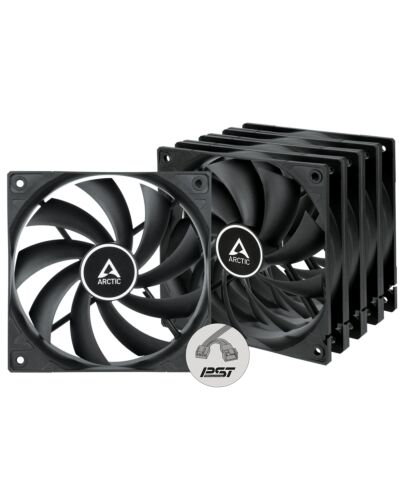

ARCTIC F12 PWM PST - 120 mm PWM Case Fan

Name: ARCTIC F12 PWM PST - 120 mm PWM Case Fan
Brand: ARCTIC
SKU: MAZ-0000008209
Price: 19.85 GBP
Availability: OutOfStock

Be the first to review this product

£19.85

ARCTIC F12 PWM PST - 120 mm PWM Case Fan, Fan, 12 cm, 230 RPM, 1350 RPM, 0.3 sone, 90.1 m³/h

Out of stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Reasons To Buy

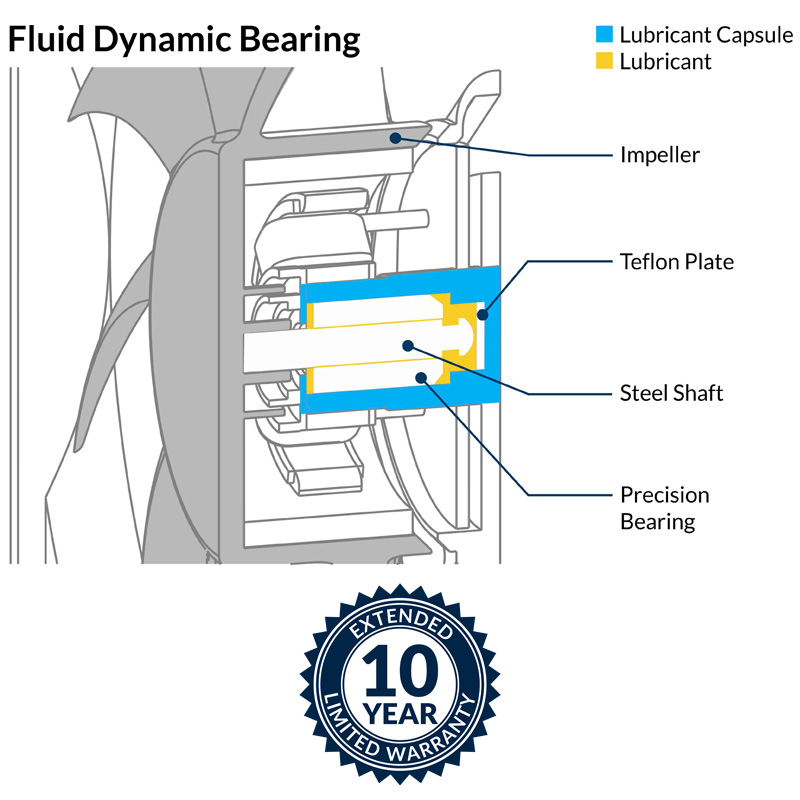

Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

Perfect Case Fan Regulation with PWM

The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

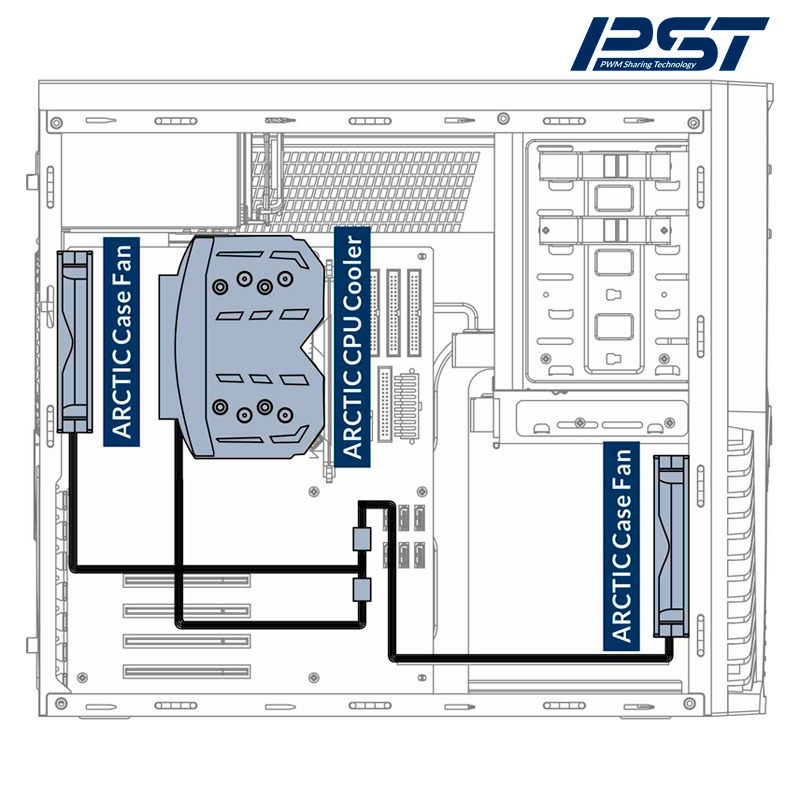

PWM Sharing Technology (PST) Lowers Noise

If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

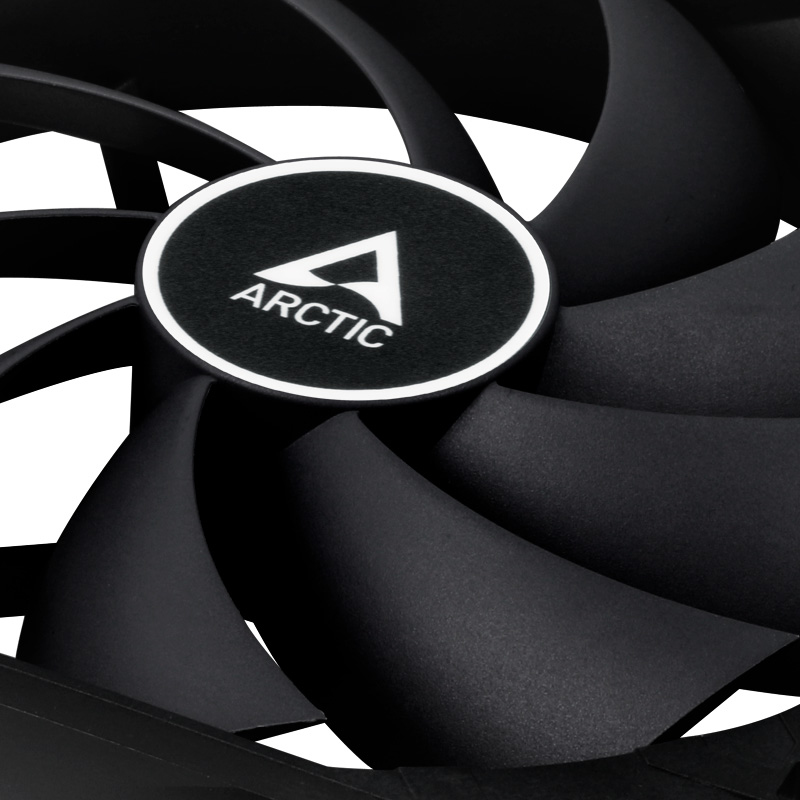

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

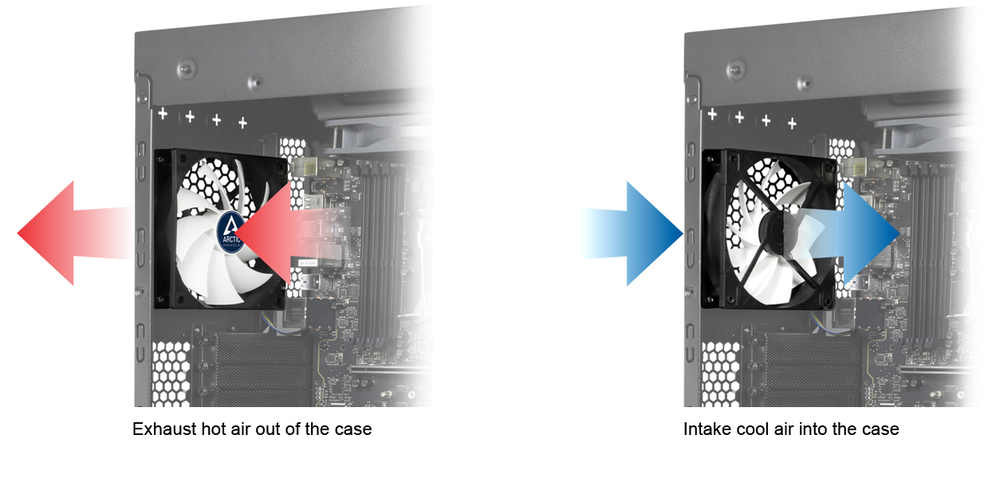

Two Way installation

Blow warm air out of the case

Draw cool air into your case

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

12 cm

Supported processor sockets

Not supported

Compatible processor series

Not supported

Rotational speed (min)

230 RPM

Rotational speed (max)

1350 RPM

Noise level

0.3 sone

Maximum airflow

53 cfm

Airflow

90.1 m³/h

Minimum air pressure

1 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Quantity per pack

5 pc(s)

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Number of fans

5 fan(s)

Fan connector

4-pin + 4-pin

Power

Voltage

12 V

Starting voltage

6 V

Rated current

0.12 A

Weight & dimensions

Width

120 mm

Depth

120 mm

Height

25 mm

Weight

109 g

Cable length

0.4 m

Package width

123 mm

Package depth

127 mm

Package height

130 mm

Package weight

692 g

Packaging content

Package type

Box

Other features

Country of origin

Hong Kong

Additional Information

More Information
EAN/UPC	4895213703345
MPN	ACFAN00250A
BRAND	ARCTIC
