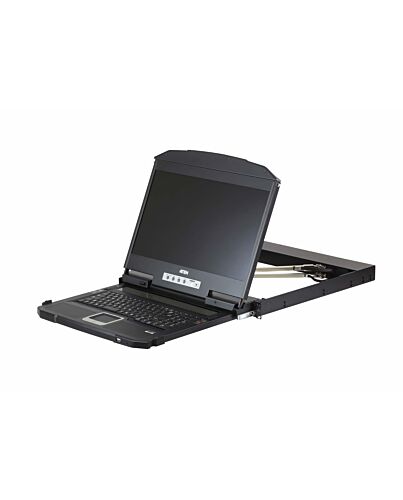

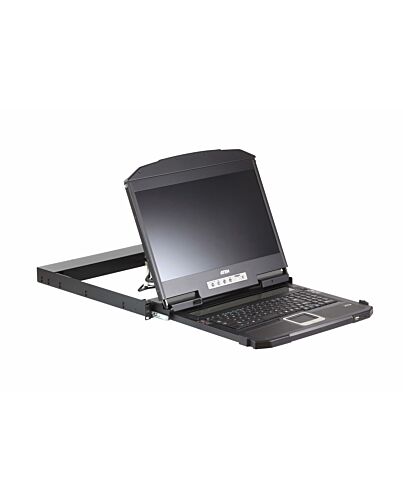

ATEN 18.5" Dual Rail USB HDMI-DVI-VGA Full HD
£2,117.54
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Why ATEN Ultra Short Depth Solutions?
The new series provides a space-optimizing solution with an industry-leading ultra short depth design in a 1U 18.5" LCD console for both dual rail and single rail models. It is specifically designed for control environments where space is limited, including outside broadcast vans (OB vans), portable rack mount cases or any computer room where space is at a premium.
Ultra Short Depth
Both 18.5" single/dual rail ultra short depth designs are especially suitable for OB vans, portable rack mount cases or any computer room where space is at a premium.
Dual Rail Design
CL3800 dual rail design allows LCD monitor and keyboard modules to operate independently, optimizing space utilization while providing 24/7 monitoring.
The new series provides a space-optimizing solution with an industry-leading ultra short depth design in a 1U 18.5" LCD console for both dual rail and single rail models. It is specifically designed for control environments where space is limited, including outside broadcast vans (OB vans), portable rack mount cases or any computer room where space is at a premium.
Ultra Short Depth
Both 18.5" single/dual rail ultra short depth designs are especially suitable for OB vans, portable rack mount cases or any computer room where space is at a premium.
Dual Rail Design
CL3800 dual rail design allows LCD monitor and keyboard modules to operate independently, optimizing space utilization while providing 24/7 monitoring.
Key Features
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
- Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- Support three types of video inputs – HDMI, DVI, and VGA
- The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3800NW and resolutions of up to 1366 x 768 @ 60Hz for CL3800NX
- External console supports input video resolutions up to 1920 x 1200 @ 60Hz
- Audio support for connecting speakers
- Standard rack mount kit included
- Optional rack mount kits available including easy installation options
- No software required
- Firmware upgradable
- Supports hot-plugging
Specifications
Display
Display diagonal
47 cm (18.5")
Display
LCD
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1080 pixels
Rack mounting
Yes
Number of computers controlled
1
LED indicators
Status
Sustainability compliance
Yes
Push button
Yes
Compliance certificates
RoHS
Rack capacity
1U
Ports & interfaces
VGA (D-Sub) ports quantity
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
USB 2.0 Type-B ports quantity
1
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
Power supply type
AC
Power consumption (typical)
26.8 W
Power
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
514.2 mm
Height
42.8 mm
Depth
480.6 mm
Weight
9.61 kg
Packaging data
Package weight
12.9 kg
Package width
612 mm
Package depth
658 mm
Package height
135 mm
Packaging content
Cables included
AC, KVM
Manual
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
10.2 kg
Master (outer) case width
612 mm
Master (outer) case length
658 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
12.9 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264646430 |
|---|---|
| MPN | CL3800NW-ATA-EE |
| BRAND | ATEN |
