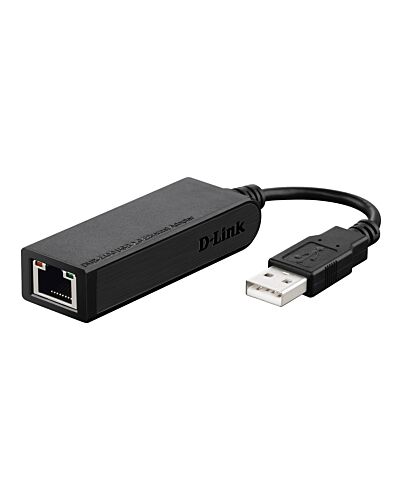

D-Link Hi-speed USB 2.0 10/100 Ethernet Adapter
£11.17
D-Link Hi-speed USB 2.0 10/100 Ethernet Adapter, Wired, USB, Ethernet, 100 Mbit/s, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.
As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB's out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ's. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.
The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.
Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB's energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.
As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB's out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ's. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.
The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.
Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB's energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
USB
Interface*
Ethernet
Ethernet LAN (RJ-45) ports
1
Network
Maximum data transfer rate*
100 Mbit/s
Networking standards*
IEEE 802.3, IEEE 802.3u
Cabling technology
10/100BaseT(X)
Full duplex
Yes
Design
Component for*
PC
Product colour
Black
Internal*
No
LED indicators
Link, Power
Certification
FCC Class B, CE Class B
Power
Input current
0.5 A
Power consumption (typical)
2.5 W
Power consumption
150 mA
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
21.3 mm
Depth
73 mm
Weight & dimensions
Height
20 mm
Weight
22 g
Packaging data
Package width
138 mm
Package depth
138 mm
Package height
30 mm
Package weight
116 g
Logistics data
Harmonized System (HS) code
85176990
Shipping (inner) case net weight
1.88 kg
Shipping (inner) case length
36 cm
Shipping (inner) case height
34.5 cm
Shipping (inner) case width
32 cm
Products per shipping (inner) case
40 pc(s)
Pallet gross weight (air)
378 kg
Master (outer) cases per pallet (air)
45 pc(s)
Products per pallet (air)
1800 pc(s)
Pallet height (air)
186 cm
Pallet gross weight (sea)
378 kg
Master (outer) cases per pallet (sea)
45 pc(s)
Products per pallet (sea)
1800 pc(s)
Pallet height (sea)
186 cm
Shipping (inner) case gross weight
8.4 kg
Pallet gross width
110 cm
Pallet gross length
120 cm
Other features
Compliance industry standards
OHCI, EHCI
Supported data transfer rates
10/100
Ports quantity
1
Additional Information
EAN/UPC | 790069245954 |
---|---|
MPN | DUB-E100 |
