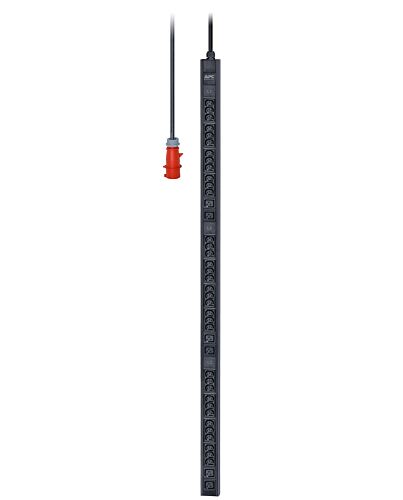

APC Easy Rack PDU, Basic, 0U, 3 Phase, 11kW, 230V, 16A, 36 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet

£528.00
APC Easy Rack PDU, Basic, 0U, 3 Phase, 11kW, 230V, 16A, 36 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet, Basic, 0U, Three-phase, Vertical, Aluminium, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

APC Easy Basic Rack PDU EPDU1216B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1216B has IEC 309 16A 3P+N+E type inlet, Thirty six IEC C13 and six IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Specifications

Design

PDU types*
Basic
Type
Three-phase
Rack capacity*
0U
Mounting
Vertical
Housing material
Aluminium
Product colour
Black
On/off switch
No

Ports & interfaces

AC outlets quantity*
42 AC outlet(s)
Power plug
IEC 60309
AC outlet types*
C13 coupler, C19 coupler

Features

Cable length
2.5 m

Power

Nominal input voltage*
400 V
AC input frequency
50 - 60 Hz
Maximum current*
16 A
Nominal output voltage
230 V
Load capacity
11000 VA
Maximum input current per phase
16 A
Maximum power
11000 W

Certificates

Certification
CE, TUV

Operational conditions

Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m

Weight & dimensions

Width
62 mm
Depth
44 mm
Height
1506 mm
Weight
3.08 kg

Packaging content

Manual
Yes

Packaging data

Package weight
4.28 kg
Package width
160 mm
Package depth
110 mm
Package height
1660 mm

Logistics data

Total carbon footprint (kg of CO2e)
78.59

Additional Information

More Information
EAN/UPC 731304405054
MPN EPDU1216B
