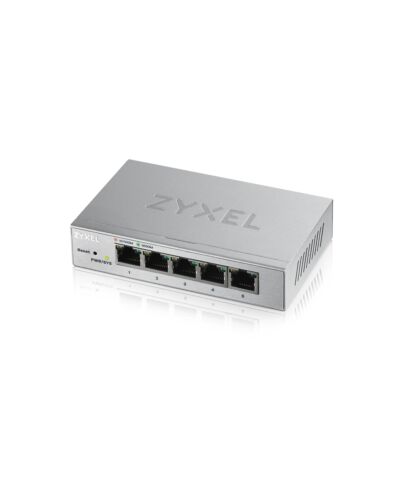

Zyxel GS1200-5 Managed Gigabit Ethernet (10/100/1000) Silver

£14.80
Zyxel GS1200-5, Managed, Gigabit Ethernet (10/100/1000)
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Easy web management and set-up wizard
This switch comes with a user-friendly web-based set-up wizard that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.

IGMP Snooping for optimized traffic delivery
Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.

VLAN segregation for enhanced network security
VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users.

Enhanced port-based QoS for better traffic control
QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.

Link Aggregation increase throughput beyond what a single connection could sustain
GS1200-5/8 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability.

Advanced energy-savings at work
This switch’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during times of low traffic.

Fanless, noiseless design
Extend your network control and visibility without disrupting your quiet business environment. This business switch features a fanless design that ensures noiseless operation and greater reliability over time with fewer parts to fail.

More comprehensive smart features included
Featuring Gigabit performance that’s 10 times faster than Fast Ethernet. Deliver up to 2,000 Mbps of dedicated, non-blocking bandwidth per port and more advanced features like port mirroring, Jumbo Frame, broadcast storm control, loop detection/prevention. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

Specifications

Management features

Switch type*
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
5
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack

Network

Networking standards*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes

Data transmission

Switching capacity*
10 Gbit/s
MAC address table*
2000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
1 MB

Security

DHCP features
DHCP client
IGMP snooping
Yes
Authentication
Auto VLAN, MAC-based authentication

Multicast features

Multicast support
Yes

Protocols

Management protocols
IGMPv1,IGMPv2,IGMPv3

Design

Rack mounting*
No
Product colour
Silver
LED indicators
Power

Design

Safety
CE-LVD, BSMI
Electromagnetic compatibility
CE, FCC, BSMI, Class B

Performance

Firmware upgradeable
Yes

Power

DC input voltage
5 V
Input current
1 A
Power consumption (max)
2.03 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
121 mm
Depth
75 mm
Height
26 mm
Weight
233 g

Packaging content

Quick start guide
Yes

Packaging data

AC adapter included
Yes
Package type
Box
Rubber feet
Yes
Package width
127 mm
Package depth
82 mm
Package height
95 mm
Package weight
388 g

Logistics data

Harmonized System (HS) code
85176990

Additional Information

More Information
EAN/UPC 4718937598687
MPN GS1200-5-GB0101F
BRAND Zyxel
