Networking

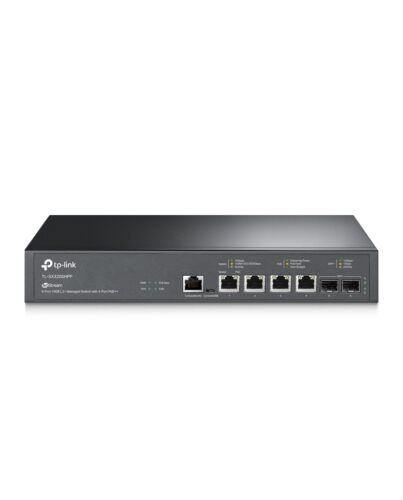

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
£489.98
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Lightning-Fast Connection with Full 10GE Ports
Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.
Empowering the WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It s the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled f a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.
Empowering the WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It s the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled f a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
Key Features
- Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots
- PoE++ Output with 200 W Power Budget†: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping
- Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
Management features
Switch type*
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
4
Basic switching RJ-45 Ethernet ports type*
10G Ethernet (100/1000/10000)
SFP+ ule slots quantity
2
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support*
Yes
Port mirroring
Yes
IP routing
Yes
Routing entries
512
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs
4000
Data transmission
Switching capacity*
120 Gbit/s
Forwarding rate
89.28 Mpps
MAC address table*
32000 entries
Static route
Yes
Number of static routes
48
Jumbo frames support
Yes
Jumbo frames
9000
Security
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
HTTPS, SSL/TLS
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
ation
Guest VLAN
ation type
AAA, RADIUS, TACACS+
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Protocols
Management protocols
SNMP v1/v2c/v3
Design
Rack mounting*
Yes
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)
Performance
Minimum system requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
244.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
60 W
Total Power over Ethernet (PoE) budget
200 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
835.67 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes
Packaging data
Package width
400 mm
Package depth
250 mm
Package height
80 mm
Package weight
2.62 kg
Certificates
Certification
CE, FCC, RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364006624 |
|---|---|
| MPN | SX3206HPP |
| BRAND | TP-LINK |
