ATEN 2-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)
£22.49
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

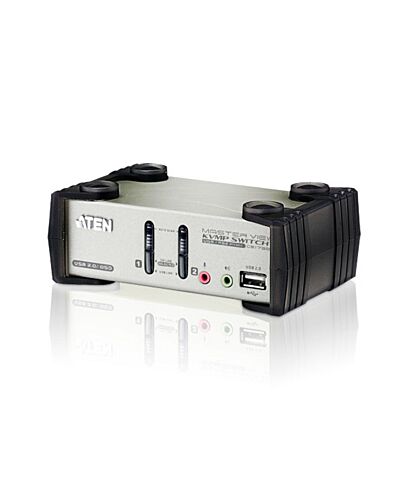

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers f a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
Key Features
- Superior video quality; 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Supports computers with PS/2 or USB keyboard and mouse configurations
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
Console ports*
3.5mm headphone, 3.5mm mic
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Video bandwidth
60 Hz
Scan interval
1,255 s
DDC2B support
Yes
upgradeable
Yes
Design
Product colour*
Black, Metallic
Housing material
Metal
Cable length
1.2 m
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
On Screen Display (OSD)
Yes
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
2.5 W
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
140 mm
Depth
88 mm
Height
55.5 mm
Weight
1.15 kg
Packaging data
Package width
62 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.34 kg
Packaging content
Cables included
KVM
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
11.5 kg
Harmonized System (HS) code
85176200
Master (outer) case width
335 mm
Master (outer) case length
582 mm
Master (outer) case height
195 mm
Master (outer) case gross weight
14.2 kg
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 4710423775060 |
|---|---|
| MPN | CS1732B-AT-E |
| BRAND | ATEN |
