Networking

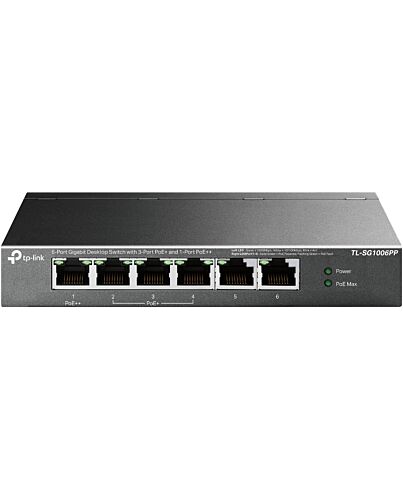

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
£54.17
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Key Features
- 6× 10/100/1000 Mbps RJ45 ports
- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend e**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
6
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Data transmission
Switching capacity*
12 Gbit/s
Forwarding rate
8.928 Mpps
MAC address table*
4000 entries
Store-and-forward
Yes
Security
IGMP snooping
Yes
Design
Rack mounting*
Yes
Stackable*
Yes
Product colour
Grey
LED indicators
Yes
Performance
Fanless
Yes
Power
Power source*
DC/PoE
Power supply included*
Yes
DC input voltage
53.5 V
Input current
1.31 A
Power consumption (typical)
4.75 W
Power consumption (max)
71.46 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
64 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
16.2 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging content
Quick start guide
Yes
Packaging data
Package type
Box
Certificates
Certification
FCC, CE, RoHS
Disclaimer
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend e will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
**The speed of the ports in extend e will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
