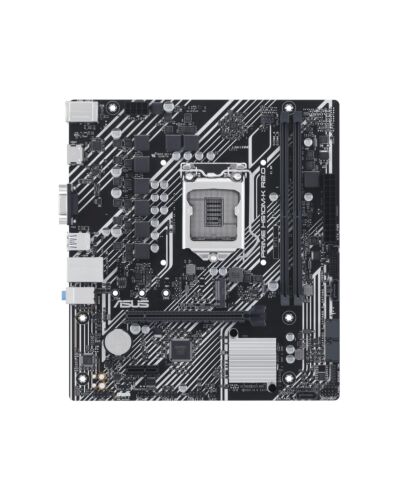

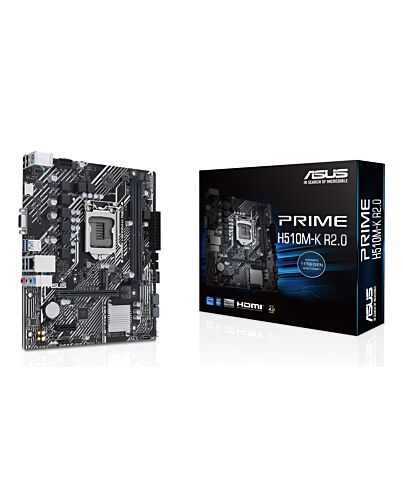

ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
£73.49
ASUS PRIME H510M-K R2.0, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1200 (Socket H5)
Compatible processor series*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory*
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
TPM connector
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
COM ports quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
Intel H510
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
Number of M.2 (M) slots
1
BIOS
BIOS type*
EFI AMI
BIOS memory size
128 Mbit
Weight & dimensions
Width
226 mm
Depth
203 mm
Additional Information
| EAN/UPC | 4711387113189 |
|---|---|
| MPN | 90MB1E80-M0EAY0 |
| BRAND | ASUS |
