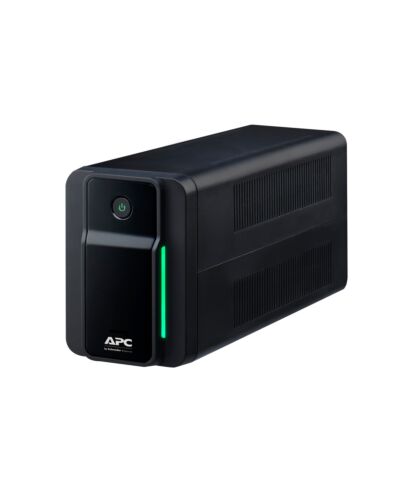

APC Back-UPS 500VA, 230V, AVR, IEC Sockets
£67.32
APC Back-UPS 500VA, 230V, AVR, IEC Sockets, Line-Interactive, 0.5 kVA, 300 W, Sine, 140 V, 300 V
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use
Specifications
Features
UPS topology*
Line-Interactive
Output power capacity*
0.5 kVA
Output power*
300 W
Waveform*
Sine
Input operation voltage (min)*
140 V
Input operation voltage (max)*
300 V
Input frequency*
50/60 Hz
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
273 J
Efficiency
96.1%
Input power factor
0.63
Noise level
40 dB
Surge protection
Yes
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm
Ports & interfaces
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
3 AC outlet(s)
Number of output IEC jumpers
1
Ethernet LAN (RJ-45) ports
2
Cabling technology
10/100/1000Base-T(X)
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
12 V
Battery life (max)
5 year(s)
Battery recharge time
8 h
Automatic battery test
Yes
Design
Form factor*
Tower
Cable length
1.5 m
Product colour*
Black
LED indicators
Battery replacement
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Certificates
Compliance certificates
RoHS
Certification
CE, EAC, EN/IEC 62040-1
Weight & dimensions
Width
98 mm
Depth
310 mm
Height
138 mm
Weight
4.2 kg
Packaging data
Package width
142 mm
Package depth
346 mm
Package height
222 mm
Package weight
4.5 kg
Logistics data
Harmonized System (HS) code
85078000
Additional Information
| EAN/UPC | 731304435648 |
|---|---|
| MPN | BX500MI |
