ATEN 1U Short Depth USB HDMI Single Rail Full
£1,828.93
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

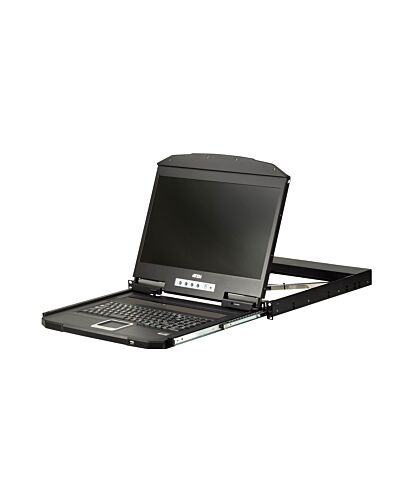

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3700 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-28V1-V11G USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CL3700 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-28V1-V11G USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Key Features
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
- The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3700NW and resolutions of up to 1366 x 768 @ 60Hz for CL3700NX
- Supports an external console with USB / HDMI connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
Specifications
Display
Display diagonal
47 cm (18.5")
Display resolution
1920 x 1080 pixels
Display
TFT-LCD
Display brightness
350 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.213 x 0.213 mm
Aspect ratio
16:9
Display type
TFT
Response time
20 ms
Display number of colours
16.78 million colours
Technical details
Material
Metal, Plastic
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Number of computers controlled
1
Push button
Yes
Compliance certificates
RoHS
Rack capacity
1U
Ports & interfaces
3.5 mm (1/8-inch) in
Yes
Interface
HDMI
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
USB 2.0 Type-A ports quantity
3
USB 2.0 Type-B ports quantity
1
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Power
Power consumption (typical)
23.9 W
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
480.6 mm
Height
477 mm
Depth
42.8 mm
Weight
10.1 kg
Packaging data
Package weight
11.9 kg
Package width
612 mm
Package depth
658 mm
Package height
135 mm
Logistics data
Master (outer) case net weight
10.1 kg
Master (outer) case width
612 mm
Master (outer) case length
658 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
12.6 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264647284 |
|---|---|
| MPN | CL3700NW |
| BRAND | ATEN |
