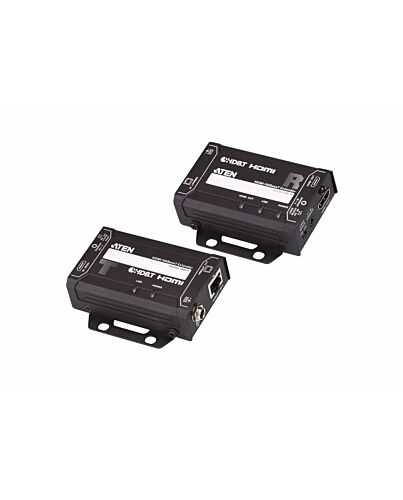

ATEN HDMI HDBaseT Small Factor Extender
£373.80
ATEN HDMI HDBaseT Small Factor Extender, 4096 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.
1x VE811T HDMI HDBaseT Transmitter
1x VE811R HDMI HDBaseT Receiver
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
1x VE811T HDMI HDBaseT Transmitter
1x VE811R HDMI HDBaseT Receiver
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
Key Features
- HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- HDCP 2.2 compatible
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
150 m
Bandwidth
10.2 Gbit/s
Bandwidth
340 MHz
HDCP
Yes
Material
Metal
Impedance
100 Ω
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Audio input
1
Audio output
1
DC-in jack
Yes
Power
Operating voltage (transmitter)
5 V
Operating voltage (receiver)
5 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
630 g
Receiver dimensions (WxDxH)
86.4 x 73 x 24.7 mm
Receiver weight
170 g
Transmitter dimensions (WxDxH)
86.4 x 73 x 24.7 mm
Transmitter weight
160 g
Packaging data
Quantity per pack
2 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
705 g
Packaging content
Quick start guide
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
4.02 kg
Master (outer) case net weight
3.15 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264645747 |
|---|---|
| MPN | VE811 |
