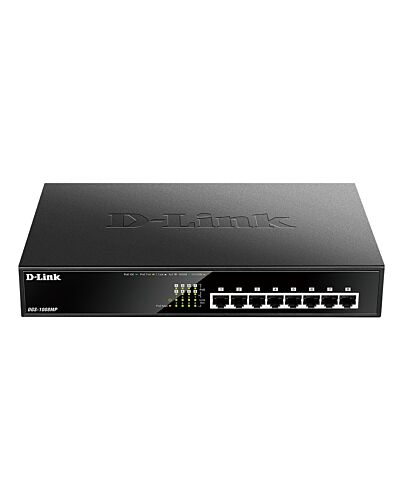

D-Link DGS-1008MP 8-Port Desktop Gigabit Max PoE Switch

£94.28
D-Link DGS-1008MP 8-Port Desktop Gigabit Max PoE Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

Key Features

  • High-Speed Networking
  • Eight 10/100/1000 Mbps Ethernet ports
  • Full/half-duplex for 10/100 Mbps Ethernet and full-duplex for 1000 Mbps Ethernet Reliability
  • IEEE 802.3x Flow Control
  • Store-and-forward switching scheme
  • RoHS compliant Easy Setup
  • Plug-and-play installation
  • Auto MDI/MDI-X crossover on all ports Desktop and Rackmount Design
  • Rack-mountable 11” metal casing (1U)
  • Fanless design PoE Functionality
  • IEEE 802.3at-compliant
  • 125 W total power budget
  • Up to 30 W power output per port

Specifications

Management features

Switch type*
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)

Network

Networking standards*
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Auto MDI/MDI-X
Yes

Data transmission

Switching capacity*
16 Gbit/s
MAC address table*
8000 entries
Store-and-forward
Yes
Packet forwarding rate (1 Gbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
1488000 pps
Packet buffer memory
0.192 MB

Design

Rack mounting*
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
13.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
140 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C

Operational conditions

Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
280 mm
Depth
180 mm
Height
44 mm
Weight
1.84 kg

Packaging data

Package width
262 mm
Package depth
391 mm
Package height
102 mm
Package weight
2.85 kg

Technical details

Shipping (inner) case height
28.5 cm
Shipping (inner) case width
40.6 cm
Shipping (inner) case length
54.5 cm
Shipping (inner) case net weight
14.2 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
563.8 kg
Master (outer) cases per pallet (air)
36 pc(s)
Products per pallet (air)
180 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
193.5 cm
Pallet gross weight (sea)
563.8 kg
Master (outer) cases per pallet (sea)
36 pc(s)
Products per pallet (sea)
180 pc(s)
Pallet height (sea)
193.5 cm
Shipping (inner) case gross weight
15.3 kg

Logistics data

Harmonized System (HS) code
85176990

Additional Information

More Information
EAN/UPC 790069420337
MPN DGS-1008MP
